描述
海康威視 DS-D5050U3-1V0S 是 50 吋 UHD（3840 × 2160）VA 顯示屏，60 Hz，設 3 個 HDMI 輸入，原廠標稱可 7 × 24 小時運作。香港防盜為安裝商及經銷商，規格以原廠為準。

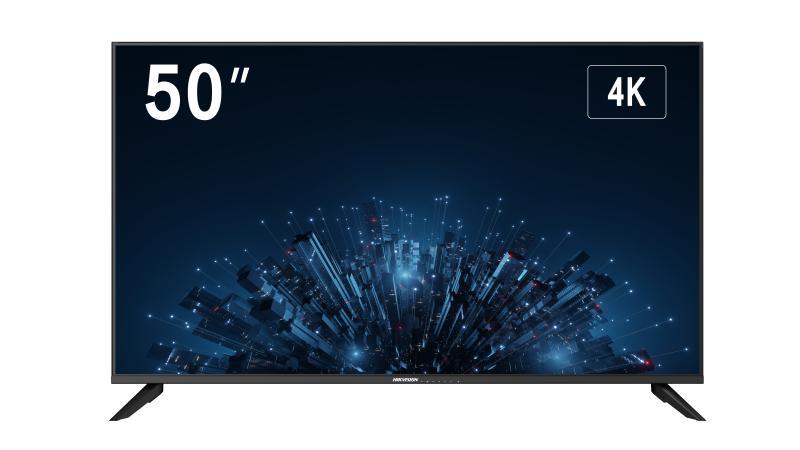

DS-D5050U3-1V0S
50 inch UHD 60Hz VA Monitor(EU)
- Display
- Screen Size50 inch
- Active Display Area1095.84 (H) mm × 616.41 (V) mm
- Resolution3840 ×2160
- BacklightD-LED
- Pixel Pitch0.2853 (H) mm × 0.2853 (V) mm
- Brightness300 cd/㎡
- Viewing Angle178°(H)/178°(V)
- Color Depth8 bit + FDR
- Contrast Ratio4000：1
- Response Time6.5 ms（typ）
- Refresh Rate60 Hz
- Surface TreatmentHaze 25%, 3H
- Reliability7 × 24 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI ×3
- Video & Audio OutputLINE OUT × 1
- Data Transmission InterfaceUSB2.0 × 1
- Control InterfaceRS232 IN × 1, RS232 OUT × 1
- Speaker8 Ω 10 W ×2
- Power
- Power Supply100-240 VAC, 50/60 Hz
- Power Consumption≤ 120 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA200 mm × 200 mm（4 – M6 × 8 mm）
- Bezel Width1.2 mm (top/left/right) , 17.36 mm (bottom)
- Product Dimensions (W × H × D)Without base：1110.9(W) mm × 642.71(H) mm × 80.2(D) mm 43.74(W) inch × 25.3 (H) inch × 3.16 (D) inch， With base：1110.9(W) mm × 698.01(H) mm × 231.08(D) mm 43.74 (W) inch × 27.48 (H) inch × 9.1 (D) inch
- Package Dimensions (W × H × D)1230 (W) mm × 787 (H) mm × 215 (D) mm (48.4” × 31.0” × 8.5”)
- Net Weight9.7 ± 0.5 kg (21.4 ± 1.1 lb.)
- Gross Weight13.1 ± 0.5 kg (28.9 ± 1.1 lb.)
- Packing ListMonitor ×1, base component × 1, user manual × 1, quick start guide × 1, Remote control × 1, HDMI cable (1.5 m) × 1, M4 Screw × 4，M6 Screw × 4
- Remarks*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
