描述

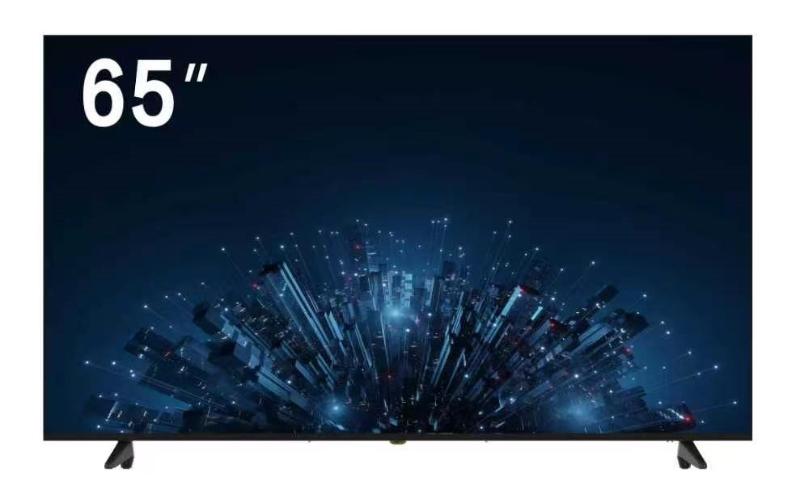

DS-D5065U3-1V0S
DS-D5065U3-1V0S(O-STD)(EU)
DS-D5065U3-1V0S 屬海康威視顯示及控制產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考電視牆。規格以原廠資料為準。
規格
Display
| Screen Size | 65 inch, 165.1 cm |
|---|---|
| Active Display Area | 1428.48 (H) mm × 803.52 (V) mm, 114.78 dm² |
| Resolution | 3840 × 2160 @ 60 Hz |
| Backlight | D-LED |
| Pixel Pitch | 0.124 (H) mm × 0.372 (V) mm |
| Brightness | 300 cd/m² |
| Color Depth | 1.07 G |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 5000 : 1 |
| Refresh Rate | 60 Hz |
| Reliability | 7 × 24 H |
| Surface Treatment | Haze 2% , 3H |
Interface
| Video & Audio Input | HDMI2.0 × 1，DP1.2 × 1，VGA × 1，LINE-IN × 1 |
|---|---|
| Video & Audio Output | NA |
| Data Transmission Interface | USB2.0 × 1 |
| Control Interface | RS232-IN × 1，RS232-OUT × 1 |
Power
| Power Supply | 100~240 V，50/60 Hz |
|---|---|
| Power Consumption | ≤ 160 W |
| Standby Consumption | ≤ 0.5 W |
Working Environment
| Working Temperature | 0 ℃ ~ 40 ℃ |
|---|---|
| Working Humidity | 20% ~ 80% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Storage Humidity | 10% ~ 90% RH (Non-Condensing) |
General
| Casing Material | Plastic |
|---|---|
| VESA | 100 × 100mm |
| Bezel Width | 400 mm × 300 mm |
| Product Dimensions (W × H × D) | 1444.8 (W) mm × 828.2 (H) mm × 85.0 (D) mm (Without base) 1444.8 (W) mm × 827.2 (H) mm × 230.7 (D) mm (With base) |
| Package Dimensions (W × H × D) | 1667 (W) mm × 1052 (H) mm × 202 (D) mm |
| Standby Time | 600s |
| Net Weight | 15.0 ± 0.5 kg |
| Gross Weight | 22.6 ± 0.5 kg |
| Packing List | Monitor × 1, Base Assembly × 2, Base Screw × 6, HDMI Cable (1.5 m) × 1, Remote Control × 1, User Manual × 1, Multi-language Manual × 1 |
