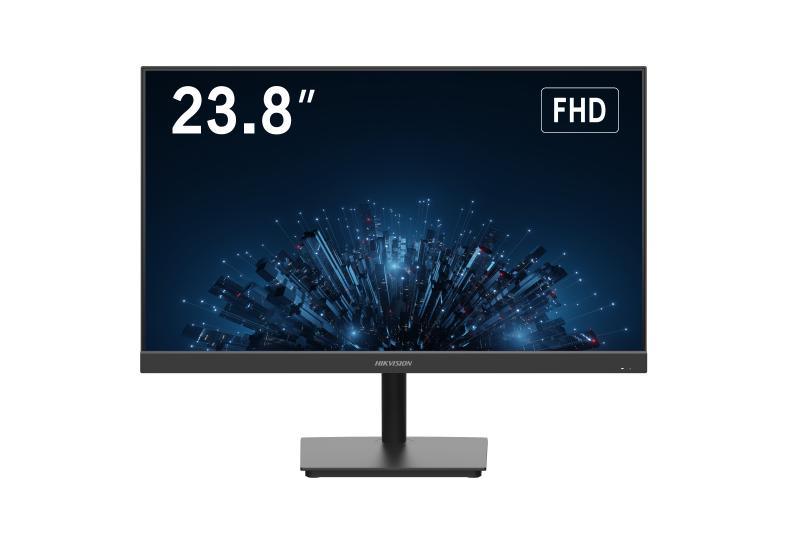

海康威視 DS-D5224F2-1V1S/B 是 24 吋（23.8 吋）監控顯示屏，設 BNC、HDMI 及 VGA 輸入，可直接接駁同軸鏡頭訊號。香港防盜為安裝商及經銷商，規格以原廠為準。
DS-D5224F2-1V1S/B
24 inch CVBS BNC monitor
- Display
- Screen Size23.8 inch
- Active Display Area527.04 mm (H) × 296.46 mm (V)
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.2745 mm (H) × 0.2745 mm (V)
- Brightness250 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit , 16.7 M
- Contrast Ratio4000 : 1
- Response Time7 ms（typ）
- Refresh Rate75 Hz
- HazeHaze 25%
- Reliability7 × 24 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputBNC× 1,HDMI 1.4 × 1, VGA x 1, Audio In x 1
- Video & Audio OutputNone
- Data Transmission InterfaceUSB 2.0 × 1
- Control InterfaceNone
- Power
- Power Supply100 ~ 240 VAC, 50 / 60 Hz
- Power Consumption≤ 24 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Speaker4 Ω 2 W × 2
- Casing MaterialPlastic
- VESA75 mm × 75 mm (4-M4 × 6 mm)
- Bezel Width2 mm（up/left/right），23.55 mm（down）
- Product Dimensions (W × H × D)With base: 539.7 (W) mm × 427.82 (H) mm × 185.74 (D) mm 21.25 (W) inch × 16.84 (H) inch × 7.31 (D) inch Without base: 539.7 (W) mm × 327.33 (H) mm × 42.7 (D) mm 21.25 (W) inch ×12.89 (H) inch × 1.68 (D) inch
- Package Dimensions (W × H × D)647 (W) mm ｘ 440 (H) mm ｘ 111 (D) mm 25.47 (W) ｘ 17.32 (H) ｘ 4.37 (D) inch
- Net Weight2.6 ± 0.5 kg (5.7 ± 1.1 lb)
- Gross Weight4.2 ± 0.5 kg (9.3 ± 1.1 lb)
- Packing ListMonitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
