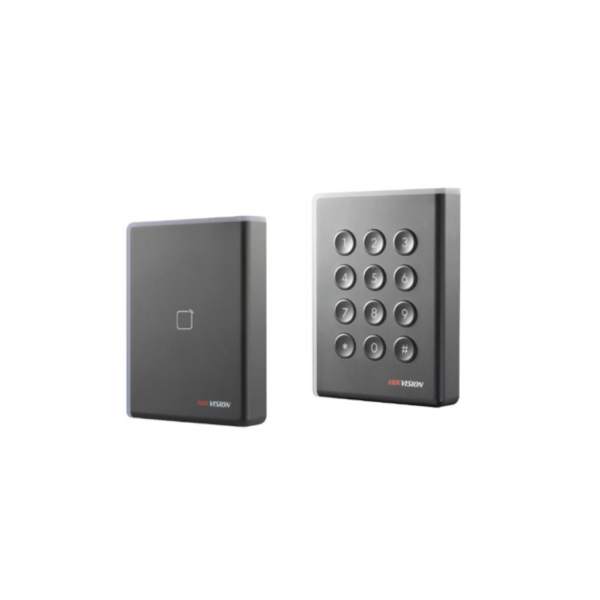

HIKVISION DS-K1108AE/AM/AD/AEK/AMK/ADK
K1100 Series Card Reader
Specification
| Reading Frequency | 125 KHz (For E Series)/13.56 MHz (For M&D Series) |
| Reading Range | EM Card: ≤ 100 mm (≤ 3.94″) M1 Card: ≤ 50 mm (≤ 1.97″) Desfire Card: ≤ 30 mm (≤ 1.18″) Felica Card: ≤ 30 mm (≤ 1.18″) |
| Shell Material | PC + ABS |
| Communication Mode | RS485/Wiegand |
| ID Settings | Via DIP Switch |
| Audio Alert | Beeper |
| Power | 12 VDC |
| Power Consumption | ≤2 W |
| LED Indicator | Power Indicator; Status LED Indicator |
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Operating Humidity | 10 % to 90 % (Non Condensing) |
| Protection Level | IP 65 |
| Dimensions (L×W×H) | 123 mm × 88 mm × 21 mm (4.53″ × 3.46″ × 0.83″) |
| Installing Method | Wall Mounting with Screws; Applied for 86/120 Gang Box |
