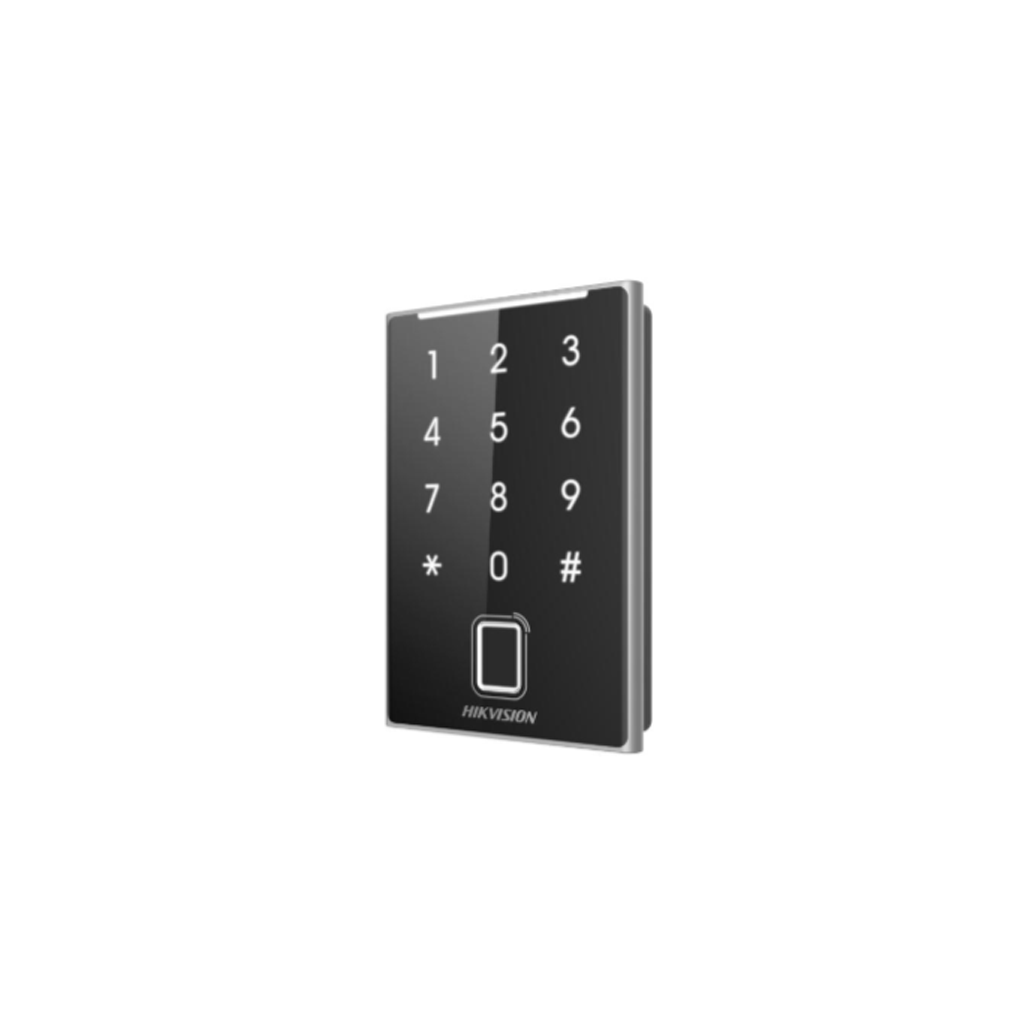

HIKVISION DS-K1109EKFB
Card Reader
Features
- Supports RS-485 and Wiegand (W26, W34) protocol
- Supports reading EM card
- Multiple authentication methods, including card, password, and fingerprint
- Supports bluetooth module
- Tamper-proof function
- Max. 5000 fingerprint capacity
Specification
| Interface | |
| TAMPER | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Authentication | |
| Card type | EM card |
| General | |
| Power supply | 12 VDC |
| Power consumption | With load: ≤ 14 w Without load: ≤ 4 w |
| Working temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Working humidity | 0 to 90% (no condensing) |
| Protective level | IP65 |
| Dimensions | 125 mm × 84.5 mm × 18 mm (4.92″ × 3.33″ × 0.71″) |
| Installation | Wall mounting |
| Weight | ≤ 1 kg (2.20 lb) |
| Buzzer | Support |
