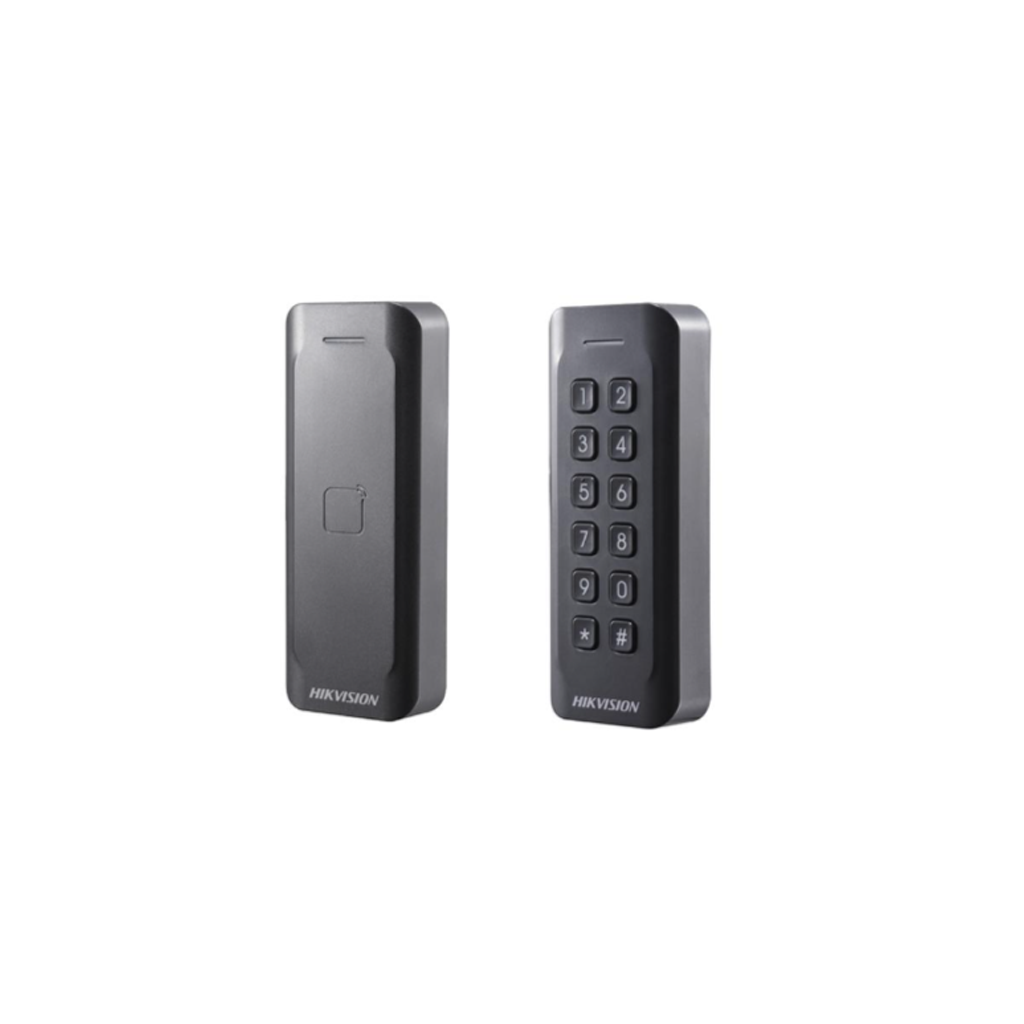

HIKVISION DS-K1802M/MK/E/EK
Wiegand Card Reader
Specification
| Reading Frequency | 125 KHz (For E Series)/13.56 MHz (For M Series) |
| Reading Range | EM Card: ≤ 100 mm (≤ 3.94″) M1 Card: ≤ 50 mm (≤ 1.97″) |
| Shell Material | PC + ABS |
| Communication Mode | Wiegand |
| Audio Alert | Beeper |
| Power | 12 VDC |
| Power Consumption | ≤1.6 W |
| LED Indicator | Power Indicator; Status LED Indicator |
| Operating Temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Operating Humidity | 10 % to 90 % (Non Condensing) |
| Protection Level | IP 65 |
| Dimensions (L×W×H) | 115.9 mm×43.3 mm×17 mm (4.56″ × 1.70″ × 0.67″) |
| Installing Method | Wall Mounting with Screws; Do Not Support Gang Box |
