描述
HIKVISION DS-K1F600U-D6E-F 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。

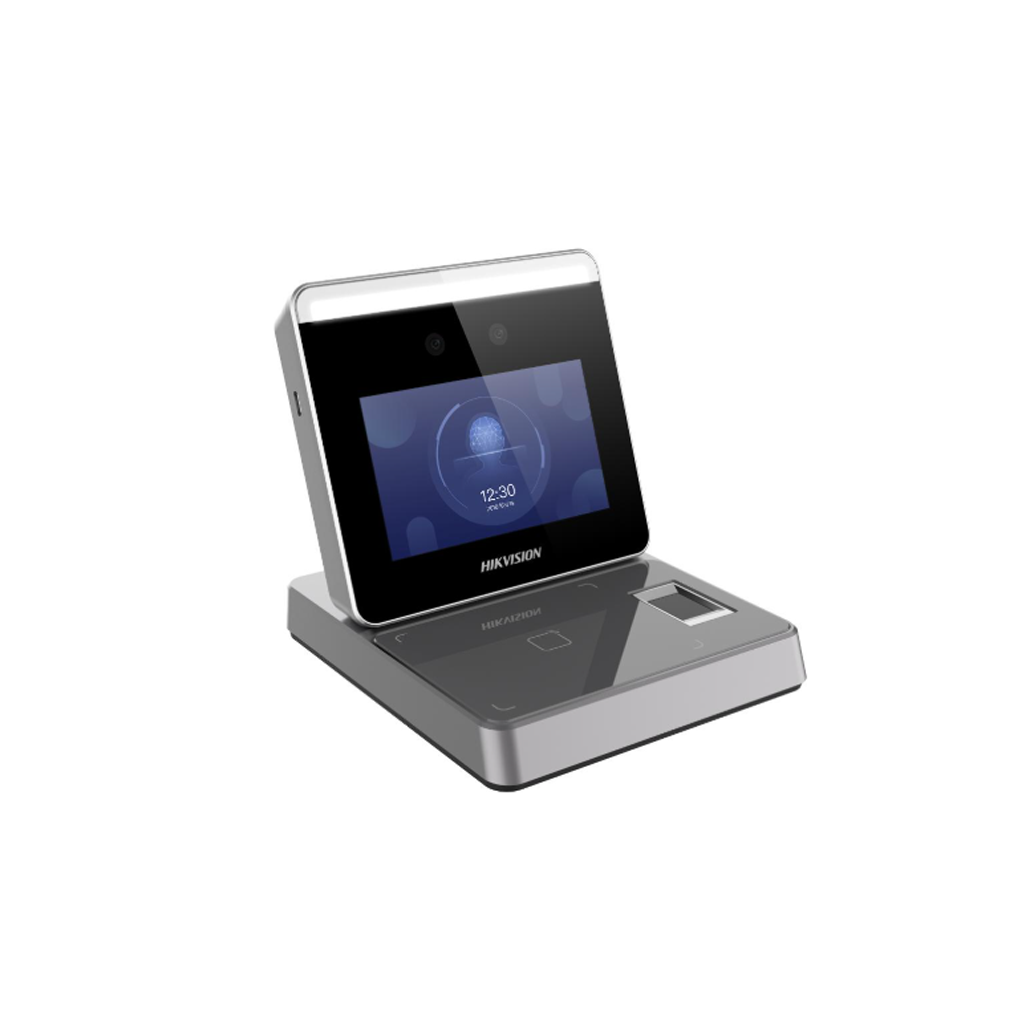

HIKVISION DS-K1F600U-D6E-F
Enrollment Station
Features
3.97-inch LCD touch screen for face enrollment, parameters configuration, live view, etc.
2 MP wide-angle dual-lens
Face anti-spoofing, Face enrollment distance: 0.3 m to 1.5m
Deep learning algorithm
2,000 user capacity, 2,000 face capacity, 20,000 card capacity, and 20,000 fingerprint capacity
Enrolls data via the device and transmits the data from the device to the platform via TCP/IP/Type C USB interface; Enrolls data remotely via the client software
Stand-alone operation: Manage, search and set device data after logging in the device locally
Specification
| System | |
| Operating system | Linux |
| Display | |
| Screen size | 3.97-inch |
| Operation method | Touch |
| Type | Capacitive |
| Resolution | 800 × 480 |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| WDR | Support |
| Network | |
| Wired network | TCP/IP |
| Wi-Fi | Support |
| Interface | |
| USB | Supports 1 USB interface and 1 Type C USB interface (Type C USB interface is used for communicating with the platform.) |
| Capacity | |
| User capacity | 2000 |
| Face capacity | 2000 |
| Fingerprint capacity | 20,000 (10 fingerprints per person) |
| Card capacity | 20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules) |
| Event capacity | 2000 offline enrollment records |
| Authentication | |
| Face enrollment distance | 0.3 m to 1.5 m |
| Card type | EM card,Mifare 1 card,DESfire card,Felica card |
| Card reading frequency | 13.56MHz, 125KHz |
| Card reading distance | 0 to 5 cm |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| General | |
| Power supply | 12 VDC, 15 W, Round |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10％ to 90％ |
| Dimensions | 121.6 mm × 137.9 mm × 125 mm (4.8″ × 5.4″ × 4.9″) |
| Installation | Base mounting |
| Application environment | Indoor |
