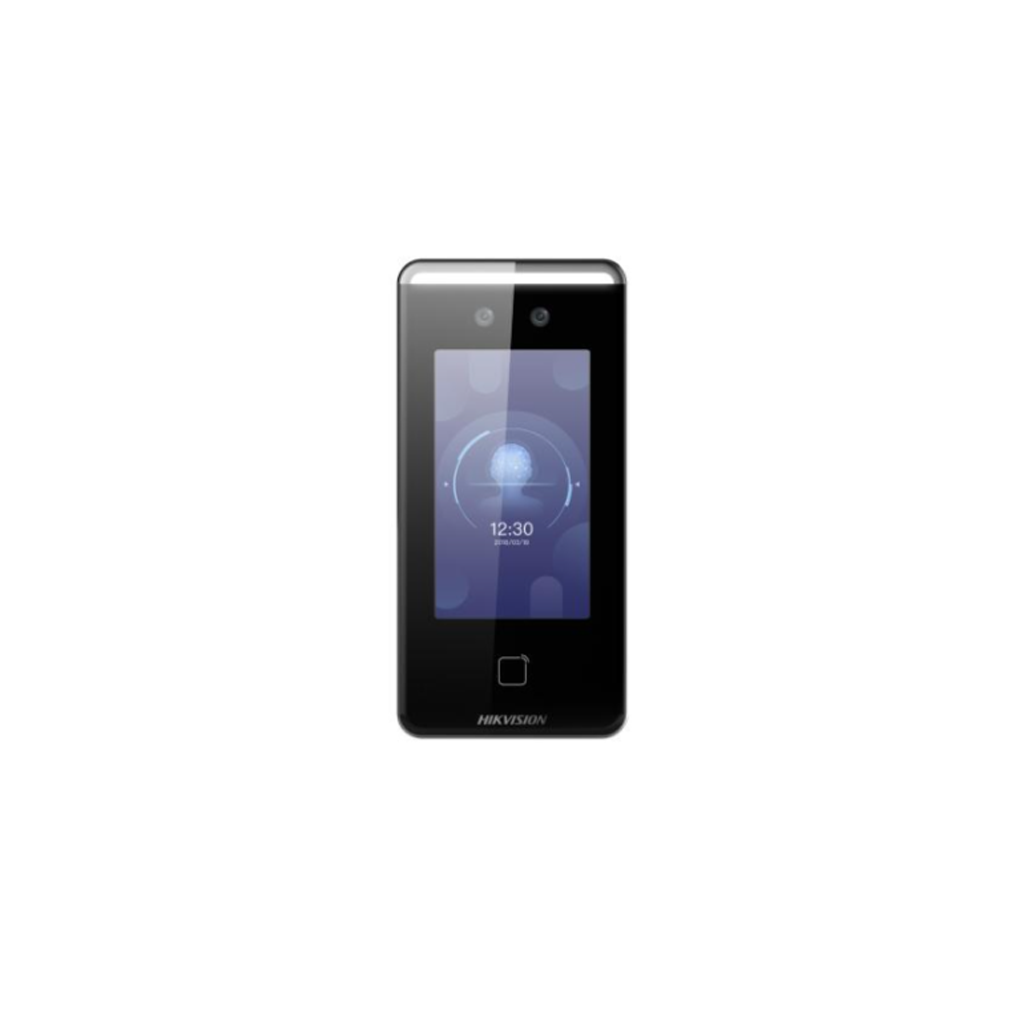

HIKVISION DS-K1T341CMW
Face Recognition Terminal
Features
Deep learning algorithm
4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
3,000 face capacity, 3,000 card capacity, and 150,000 event capacity
Multiple authentication modes, including face, and card, etc.
Face recognition duration ＜ 0.2 s/User
Supports mask wearing detection
Connects to external access controller or Wiegand card reader via Wiegand protocol
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
Two-way audio with client software, door station, indoor station, and main station
Specification
| Display | |
| Screen size | 4.3 inch |
| Operation method | Capacitive touch screen |
| Video | |
| Lens | 2 |
| Resolution | 2 MP (video stream: 720P) |
| FOV | HFOV = 41.5°; VFOV = 75.5°; DFOV = 87° |
| Audio | |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Interface | |
| Network interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION） |
| Wiegand | 1,Wiegand （Hik 26bit,Hik 34bit） |
| USB | 1 |
| Authentication | |
| Card type | M1 card |
| General | |
| Built-in access controller | Support |
| Power supply | 12 VDC to 24 VDC, 2 A |
| Power consumption | ≤ 10 W |
| Working temperature | -30 °C to 60 ℃ (-22 °F to 140 °F ) |
| Protective level | IP65 |
| Function | |
| Hik-Connect | Support |
| QR code recognition | Support |
| Face anti-spoofing | Support |
