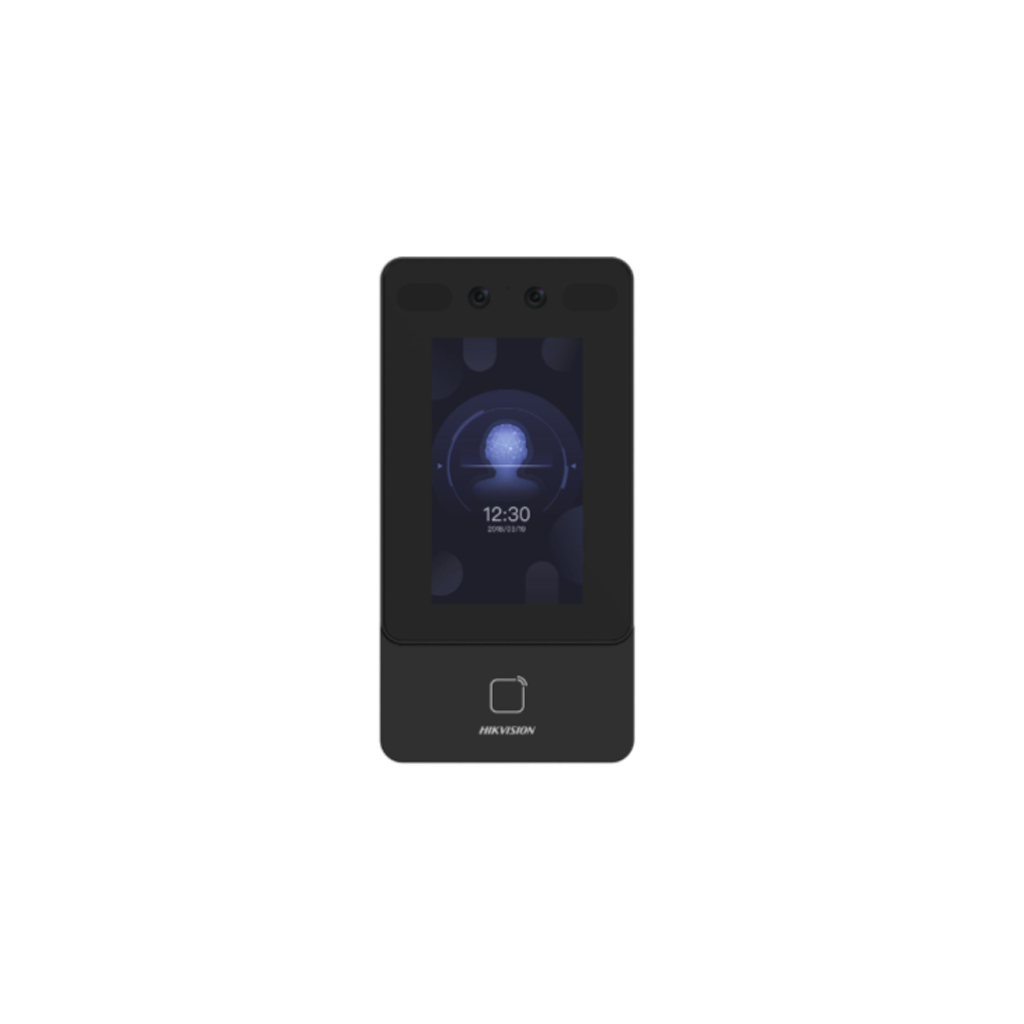

HIKVISION DS-K1T342EX
Face Recognition Terminal
Features
Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, Built-in EM card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m
Duration＜0.2 s/User
Accuracy rate ≥ 99%
Specification
| Display | |
| Screen size | 4.3 inch |
| Operation method | Capacitive touch screen |
| Type | LCD |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 75.5°; VFOV = 41.5°; DFOV = 87° |
| Audio | |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Interface | |
| Network interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand (Hik 26bit, Hik 34bit) |
| USB | 1 |
| Authentication | |
| Card type | EM card |
| Card reading frequency | 125 KHz |
| General | |
| Power supply | 12 VDC, 1 A (power adapter included) |
| Working temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Dimensions | 91.3 mm × 181.3 mm × 25.7 mm (3.59″ × 7.14″ × 1.01″) |
| Installation | Wall mounting, base mounting |
| Weight | Gross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb) |
| Platform | Hik-ProConnect and HikCentral Professional |
| Function | |
| Face anti-spoofing | Support |
