描述

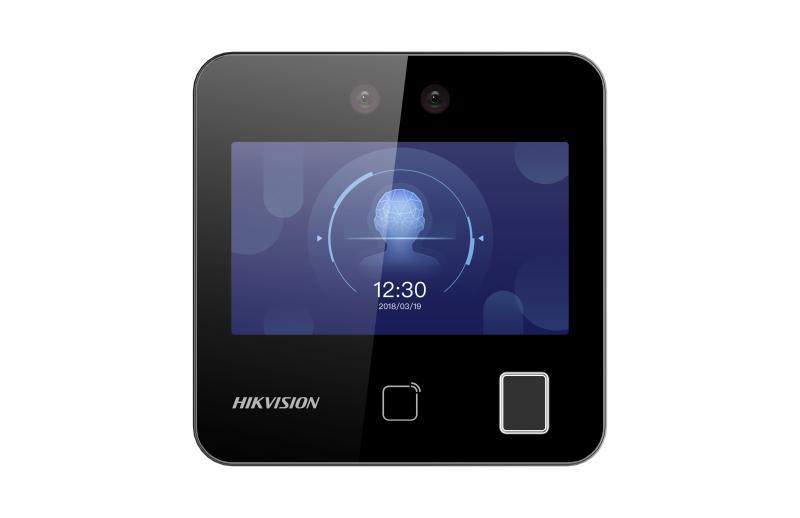

HIKVISION DS-K1T343MFWX-B Value Series Face Access Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。
DS-K1T343MFWX-B
Value Series Face Access Terminal
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Operating systemLinux
- Display
- Screen size4.3 inch
- Operation methodCapacitive touch screen
- TypeLCD
- Resolution480 × 272
- Video
- Lens2
- Resolution2 MP
- Video standardPAL (Default) and NTSC
- Network
- Wired networkSupport
- Wi-FiSupport, 2.4 G, 802.11b/g/n
- Interface
- Network interface1 RJ-45, 10/100 M self-adaptive
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- RS-4851 RS-485 (Half duplex, HIKVISION)
- Wiegand1 Wiegand (W26, W34)
- USB1
- Capacity
- Face capacity1,500
- Fingerprint capacity3,000
- Card capacity3,000
- Event capacity150,000
- Authentication
- Face recognition distance0.3 to 1.5 m
- Face recognition accuracy rate＞99%
- Face recognition duration＜ 0.2 s
- Fingerprint recognition duration＜1 s
- Card typeM1 card
- Card reading frequency13.56 MHz
- General
- Power supply12 VDC, 1 A (power adapter included) Supports power supply by battery in the bracket
- Working temperature-10 °C to 40 °C (14 °F to 104 °F)
- Working humidity0 to 90% (No condensing)
- Dimensions118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
- InstallationWall mounting, base mounting
- Gross weight: 0.71 kg (1.57 lb) Net weight: 0.23 kg (0.51 lb)
- Application environmentIndoor
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek.
- Function
- Face anti-spoofingSupport
