DS-K1T671TM

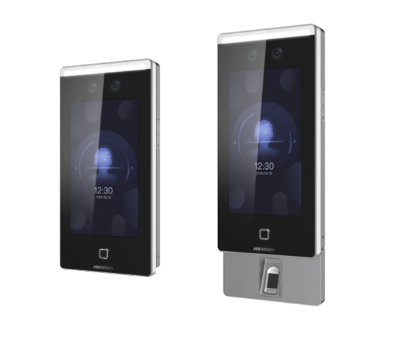

HIKVISION DS-K1T671TM Ultra Face Recognition Terminals

分類: , , , , 標籤: , ,

描述

Ultra Face Recognition Terminals

  • Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
  • 7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
  • Face recognition distance (without face mask): 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%
  • Max. 50,000 faces capacity, Max.50,000 cards
  • Two-way audio with client software,indoor station, and main station
  • Supports TCP/IP
  • Configuration via the web client
  • Supports ISAPI and ISUP5.0 protocol
  • IP65



Specification



System

  • Operation System : Linux



General

  • FOV : HFOV= 46°；VFOV=87°



Display

  • Dimensions : 7-inch
  • Type : LCD
  • Operation Method : Capacitive touch screen



Video

  • Pixel : 2 MP
  • Lens : 2



Audio

  • Tone Quality : Noise suppression and echo cancellation



Network

  • Wired Network : 10 M/100 M/1000 M self-adaptive



Interface

  • Network Interface : 1
  • RS-485 : 1
  • Wiegand : 1
  • Lock Output : 1
  • Exit Button : 1
  • Door Contact Input : 1
  • IO Input : 2
  • IO Output : 1
  • Power Interface : 2-pin
  • TAMPER : 1
  • USB : 2



Capacity

  • Card Capacity : 50,000
  • Face Capacity : 50,000
  • Event Capacity : 100,000



Authentication

  • Card Type : M1 card
  • Card Reading Frequency : 13.56 MHz
  • Card Reading Distance : 0 to 5 cm
  • Face Recognition Duration : ＜ 0.2 s per person
  • Face Recognition Accuracy Rate : ≥ 99%
  • Face Recognition Distance : 0.3 to 3 m (Without face mask)



General

  • Power Supply Method : 2 pin connecter
  • Power Supply : 12 VDC/ 2 A
  • Working Temperature : -30 ℃ to 60 ℃ (-22 °F to 140 °F)
  • Working Humidity : 10 to 90％ (No condensing)
  • Dimensions : 239 mm × 116.5 mm × 33 mm (9.4″ × 4.6″ × 1.3″)
  • Protective Level : IP65
  • Installation : Wall mounting
  • Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • Platform : Hik-ProConnect and HikCentral Professional



Function

  • Face Anti-Spoofing : Support
  • Advertisement : Support
  • Audio Prompt : Support
  • Time Synchronization : Support
