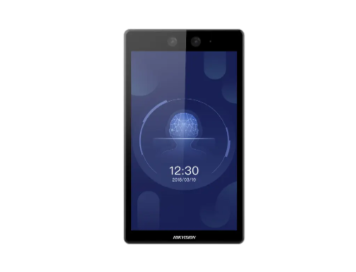

Ultra Series Wall-Mounted Face Access Terminal
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- 7-inch touch screen with bezel-less design
- Presents card on the screen to authenticate card permission
- Face recognition. Distance: 0.3 m to 3 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%
- 50,000 face capacity, 50,000 card capacity(EM card), and 50,000 event capacity
- Supports wiegand protocol and RS-485 protocol
- Two-way audio with indoor station and main station
- Supports ISAPI and ISUP5.0 protocol
- Configuration via the web client
Specification
Display
- Dimensions : 7-inch
- Type : LCD
- Operation Method : Capacitive touch screen
Video
- FOV : HFOV= 75.5°;VFOV=41.5°;DFOV=87°
- Pixel : 2 MP
- Lens : × 2 (Visible light lens × 1,850nm Infrared lens × 1)
Audio
- Tone Quality : Noise Suppression and Echo Cancellation
Network
- Wired Network : 10 M/100 M/1000 M self-adaptive
- Communication Protocol : ISUP5.0; SDK; RTSP; ISAPI; Hik-Connect; HikCentral Pro OpenAPI; Hik-ProConnect OpenAPI
Interface
- Network Interface : 1
- Lock Output : 1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Input : 2
- Alarm Output : 1
- Power Interface : 2-pin
Capacity
- Card Capacity : 50,000
- Face Capacity : 50,000
- Event Capacity : 50,000
Authentication
- Card Type : EM card
- Card Reading Frequency : 125KHz
- Face Recognition Duration : < 0.2 s
- Face Recognition Accuracy Rate : ≥99%
- Face Recognition Distance : 0.3 to 3 m
General
- Button : Touch screen
- Power Supply Method : 12 VDC/2 A
- Working Temperature : -10 °C to 50 °C (-58 °F to 122 °F)
- Working Humidity : 0 to 90% (No condensing)
- Dimensions : 185.8 × 103.36 × 20.7mm (7.31” × 4.07” × 0.81” )
- Application Environment : Indoor
- Installation : Surface mounting
- Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- Platform : Hik-ProConnect and HikCentral Professional
Function
- Face Anti-Spoofing : Support
- Audio Prompt : Support
- Time Synchronization : Support
