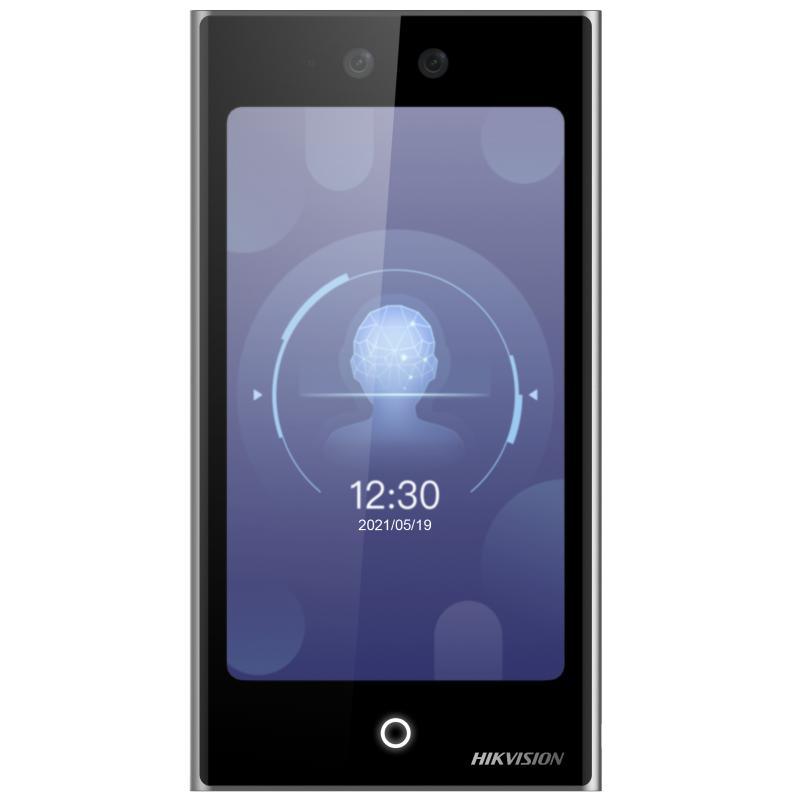

HIKVISION DS-K1T673TDWX-E1 Ultra Series Face Access Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。
DS-K1T673TDWX-E1
Ultra Series Face Access Terminal
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Operation systemLinux
- Display
- Operation methodCapacitive touch screen
- Resolution600 × 1024
- Size7-inch
- TypeTouch screen
- Video
- FOVHFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
- Pixel2 MP
- LensDual-lens
- Video standardPAL (Default)/NTSC
- Network
- Wi-FiSupport, 2.4 G, 802.11b/g/n
- Wired networkSupport 10/100/1000 Mbps self-adaptive
- Interface
- Alarm input2
- Alarm output1
- USB1 (For Module)
- Audio Output Interface1 (3.5 mm)
- PoESupport, IEEE802.3at
- Network interface1
- RS-4851 RS-485. Supports OSDP protocol version V2.1.7, Baud 19200
- Wiegand1
- Lock output1
- Exit button1
- Door contact input1
- TAMPER1
- Capacity
- Fingerprint capacity10,000 (With fingerprint module)
- Card capacity500,000
- Face capacity100,000
- Event capacity150,000
- Authentication
- Face recognition accuracy rate≥ 99%
- Card typeM1 card;DESfire card;Felica card
- Card reading distance0 to 3 cm
- Card reading duration＜ 1 s
- Face recognition duration＜ 0.2 s per person
- Face recognition distance0.3 to 3 m
- General
- Power supply12 VDC to 24 VDC/2 A
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity0 to 90% (no condensing)
- Protective levelIP65
- Dimensions110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek.
- Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
- Power OutputDC12 V,0.5A
- Function
- Two-way audioSupport
- Time synchronizationSupport
- Face anti-spoofingSupport
- Live viewSupport
- Audio promptSupport
