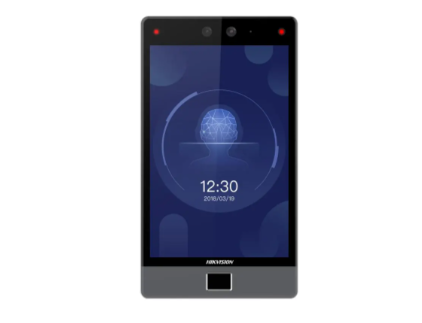

HIKVISION DS-K1T680DFW Ultra Series Wall-Mounted Face Access Terminal

描述

Ultra Series Wall-Mounted Face Access Terminal

  • 8-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate
  • Face recognition distance: 0.3 m to 3 m, duration < 0.2 s/User, accuracy rate ≥ 99%
  • 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi
  • Two-way audio with indoor station and main station
  • Configuration via the web client and mobile client
  • Customizes attendance status name



Specification



System

  • Operating System : Linux



Display

  • Screen Size : 8-inch
  • Operation Method : Capacitive touch screen
  • Resolution : 1280 × 800



Video

  • Lens : × 2
  • Resolution : 2 MP
  • FOV : HFOV= 88°;VFOV= 44°;DFOV=108°
  • Video Standard : PAL (Default) and NTSC



Network

  • Wired Network : 10 M/100 M/1000 M self-adaptive
  • Wi-Fi : Support, 2.4 G



Interface

  • Network Interface : 1
  • Lock Control : 1
  • Exit Button : 1
  • Door Contact Input : 1
  • Alarm Input : 2
  • Alarm Output : 1
  • TAMPER : 1
  • RS-485 : 1
  • Wiegand : 1
  • USB : 1



Capacity

  • Face Capacity : 100000
  • Fingerprint Capacity : 10000
  • Card Capacity : 100000
  • Event Capacity : 150000

Authentication

  • Face Recognition Distance : 0.3 to 3 m
  • Face Recognition Accuracy Rate : ≥99%
  • Face Recognition Duration : < 0.2 s
  • Card Type : DESfire card;Felica card



General

  • Power Supply : 12-24 VDC, 3 A
  • Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity : 0 to 90% (No condensing)
  • Protective Level : IP65
  • Dimensions : 127.3 mm × 232.1 mm × 23.5 mm (5.0” × 9.1” × 0.9” )
  • Power Supply Method : 12 VDC/24 VDC Power Adapter



Function

  • Language : English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
  • Face Anti-Spoofing : Support
  • Hik-Connect : Support
