描述
HIKVISION DS-K1T690M-E1 Ultra Face Recognition Terminals 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

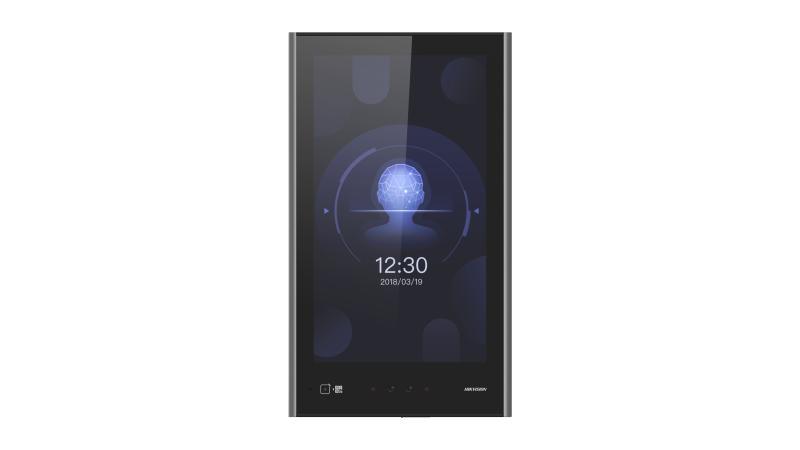

DS-K1T690M-E1
Ultra Face Recognition Terminals
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Display
- Screen size15.6 inch
- Operation methodCapacitive touch screen, gesture recognition is available
- TypeIPS
- Video
- Lens2
- Resolution2 MP
- FOVHFOV = 88°; VFOV = 44°; DFOV = 108°
- Audio
- Audio qualityNoise suppression and echo cancellation
- Network
- Wired networkSupport
- Interface
- Network interface2 RJ-45, 10/100/1000 M self-adaptive
- Lock control1
- Exit button1
- Door contact input1
- Alarm input2
- Alarm output1
- TAMPER1
- RS-4851 RS-485 (Half duplex, HIKVISION)
- Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
- USB1
- Authentication
- Card typeM1 card
- Card reading frequency13.56 MHz
- General
- Power supply12 VDC to 24 VDC, 4 A, Standard PoE
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10 to 90% (No condensing)
- Dimensions432 mm × 251 mm × 35 mm (17.0″ × 9.9″ × 1.4″)
- InstallationWall mounting, base mounting, and bracket mounting
- LanguageEnglish
- PlatformHik-ProConnect and HikCentral Professional
- Function
- Face anti-spoofingSupport
