描述
HIKVISION DS-K1T8003MF 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。

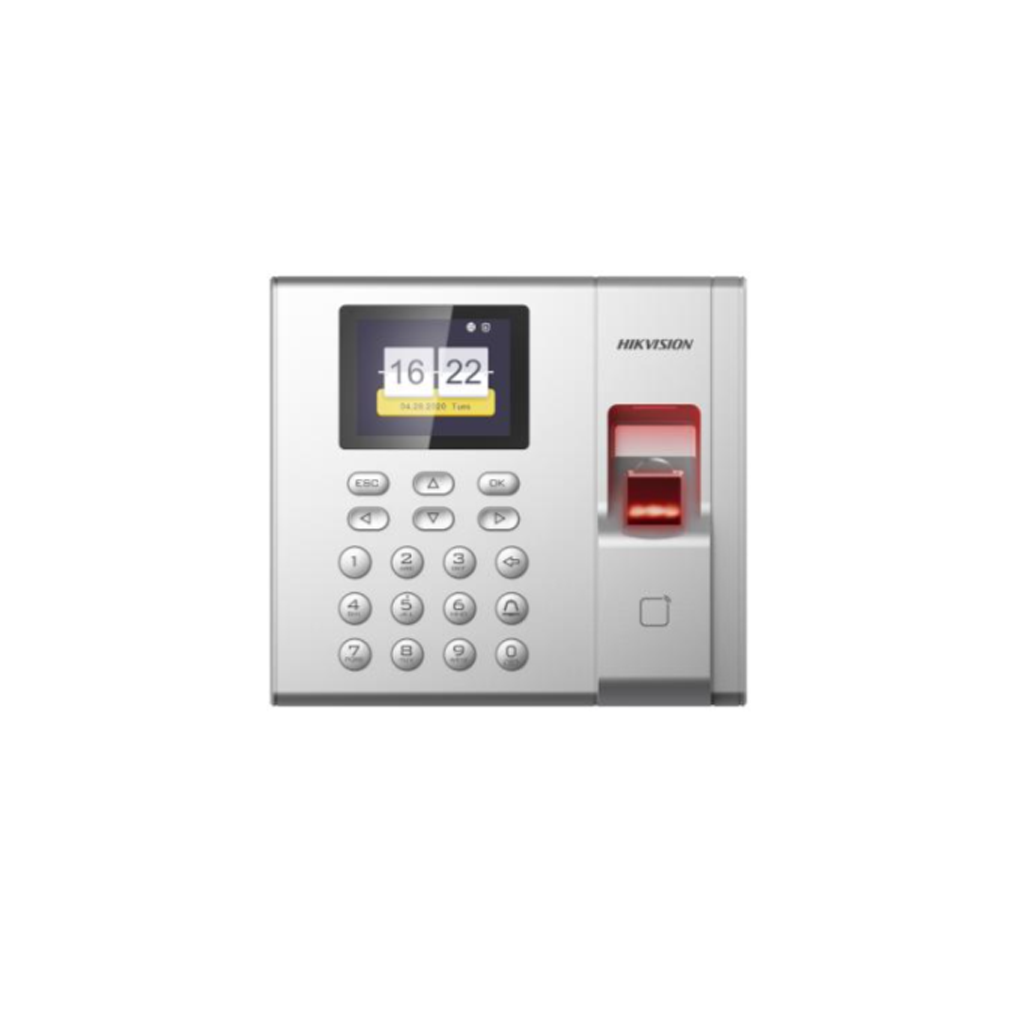

HIKVISION DS-K1T8003MF
Fingerprint Access Control Terminal
Features
2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in Mifare card reading module
Communication: TCP/IP, ISUP5.0; 1000 users, 1000 fingerprints, 1000 card and Max. 100,000 event records
Support Access Control and Time Attendance Function, Optical Fingerprint Module
Remotely opens door via Hik-Connect mobile client; Tamper alarm
Specification
| Display | |
| Screen size | 2.4-inch |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Communication protocol | TCP/IP, ISUP |
| Interface | |
| Network interface | 1 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 1000 |
| Fingerprint capacity | 1000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | Mifare 1 card |
| Card reading distance | 0 to 5 cm |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | ＜ 1 s |
| General | |
| Power supply | 12 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | Silver |
| Dimensions | 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″) |
| Self Service Reports (SSR) | Stand-alone operation, calculate attendance data and export reports via USB interface |
| Installation | Wall mounting |
| Weight | Gross weight: 0.78 kg (1.72 lbs) Net weight: 0.22 kg (0.48 lbs) |
