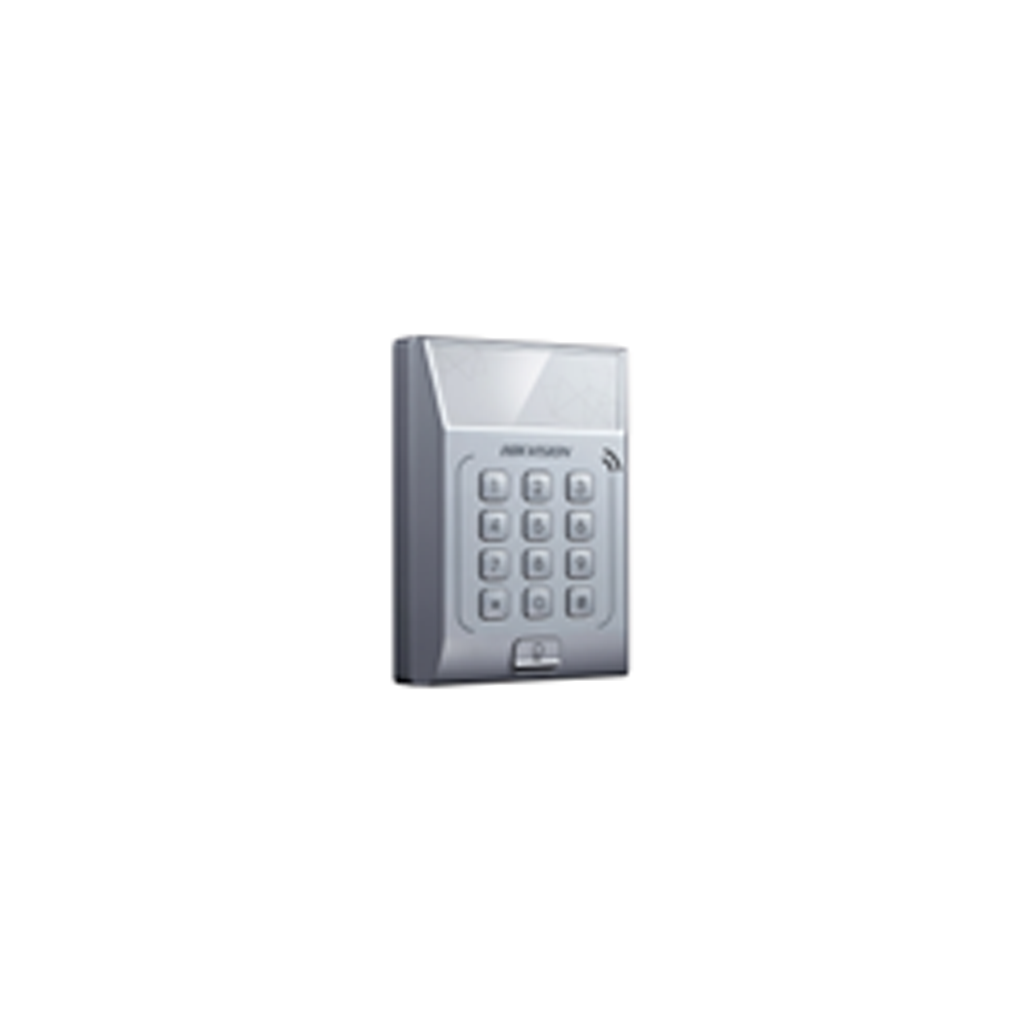

HIKVISION DS-K1T801M/E
Standalone Access Control Terminal
Specification
| Power Supply | 12 VDC |
| Processor | 32 Bit |
| Storage | Card: 3,000 |
| Card Reading Mode | EM Card (for E series) M1 Card (for M series) |
| Input Interface | Exit Button × 1, Door Sensor × 1 |
| Output Interface | Doorbell × 1, Lock Relay × 1 |
| LED Indicator | Power / Status |
| Working Temperature | -20°C to 65°C (-4°F to 149°F) |
| Working Humidity | 10 % to 90 % (Non-Condensing) |
| Dimension | 126.5 mm × 94.5 mm ×24 mm (4.98″ × 3.72″ × 0.94″) |
