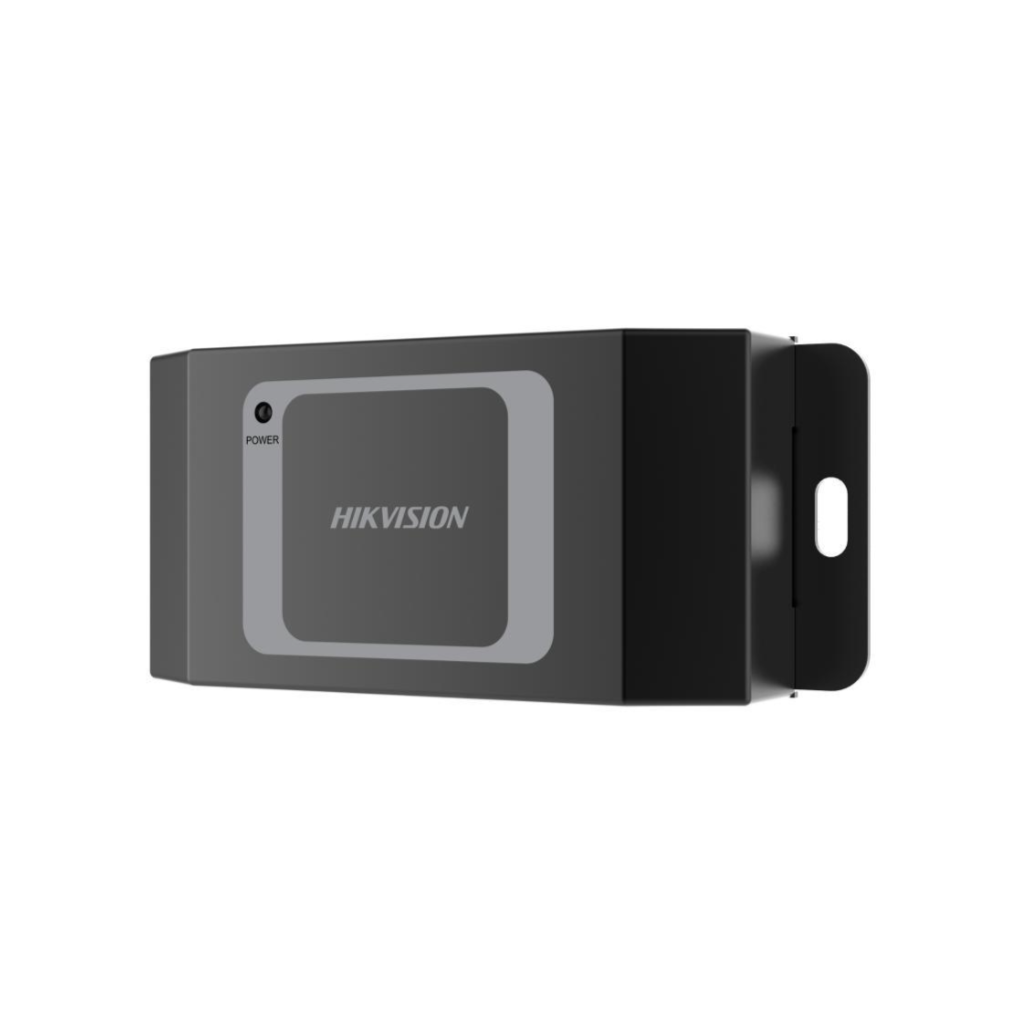

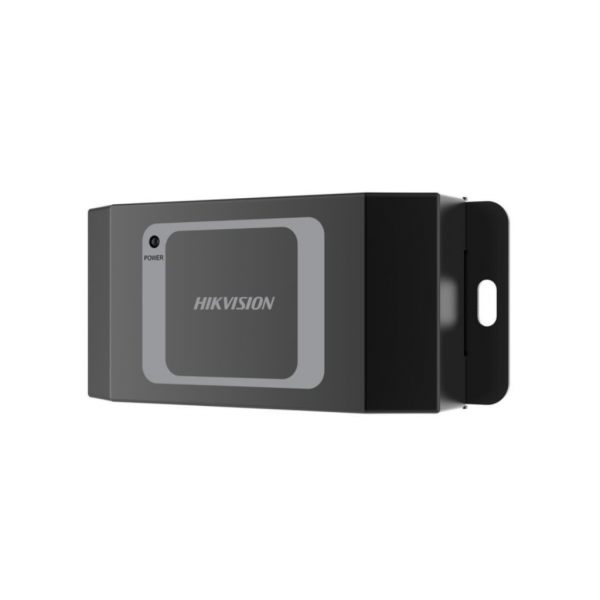

HIKVISION DS-K2M061
Secure Door Control Unit
Features
Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
Supports tampering alarm
Supports RS-485 communication indicators to show the communication status
4-ch DIP switch supporting ID No. configuration
Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
Fire interface and exit button linkage
Specification
| Interface | |
| Alarm input | 2 |
| Alarm output | 1 |
| RS-485 | 1 |
| General | |
| Indicator | 1 for power supply status |
| Power supply | 12 VDC, 0.5 A |
| Working temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Working humidity | 0% to 90% (relative humidity) |
| Dimensions | 48 mm × 115 mm × 26 mm (1.9″ × 4.5″ × 1.0″) |
| Installation | Wall Mounting |
| Weight | Gross weight: 0.28 kg (0.62 lb) Net weight: 0.20 kg (0.44 lb) |
