描述

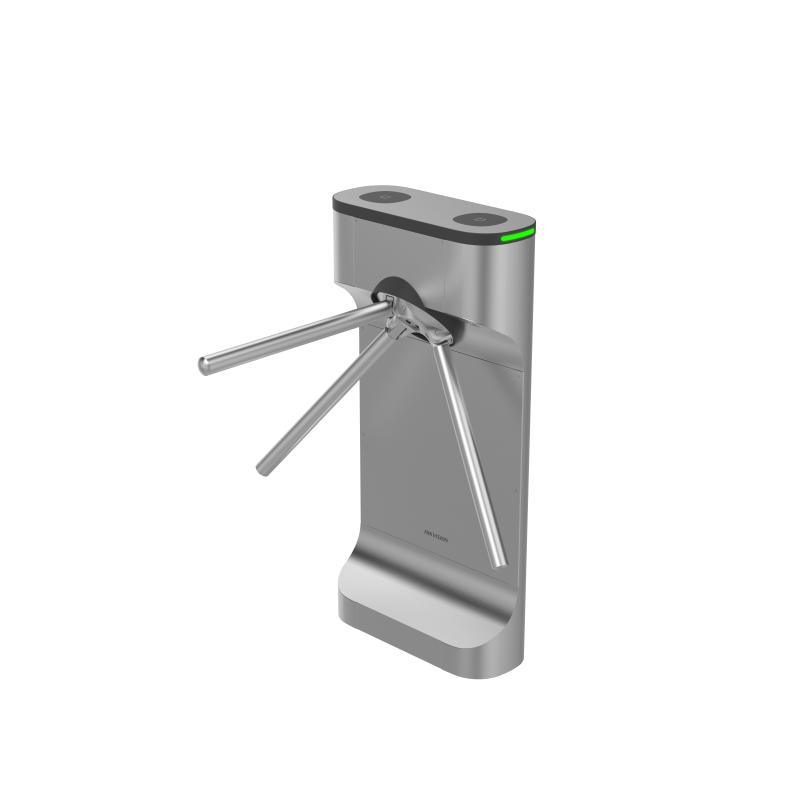

HIKVISION DS-K3G411CX Pro Tripod Turnstile 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3G411CX
Pro Tripod Turnstile
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Motor/
- MCBF≥ 3 million times
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Interface
- Network interface1
- Lock control2
- Exit button2
- Alarm output2
- RS-4854
- RS-2322
- Wiegand2
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- Capacity
- Card capacity500,000
- Event capacity500,000
- Authentication
- CardEM card or M1 card (actual corresponding card type refer to product model names).
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Audio promptSupport
- Communication protocolISAPI
- Keypad configurationSupport
- KeyfobSupport, 433 MHz/868 MHz, within 50 m
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material1.2 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1.2 mm
- Power consumptionStandby: 20 W Working: 35 W Peak: 45 W
- Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective level/
- DimensionsWithout package: 502 mm × 202 mm × 1010 mm (19.8″ × 8.0″ × 40.0″) With package: 700 mm × 430 mm × 1140 mm (27.56″ × 16.93″ × 44.88″)
- Net: 26.65 kg (58.75 lb) Gross: 32.75 kg (72.2 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 240 VAC~, 50/60 Hz, 1A-0.5A
- LanguageArabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
- Configuration
- Lane width550
- Pedestal length502 mm
- Module selectionYES
- Pedestal width202 mm
- Wall distance20 mm
- BaseYES
- Barrier materialStainless steel pipe
- Application environmentIndoor
- Authentication modeCard;Face;QR code
- Card typeEM;M1
- Recommended width550 mm
- Base modelDS-KSM01/G411
- Side pedestalYES
- Side pedestal typefence(130mm)
- Product typeTripod Turnstile
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width29 mm
