描述

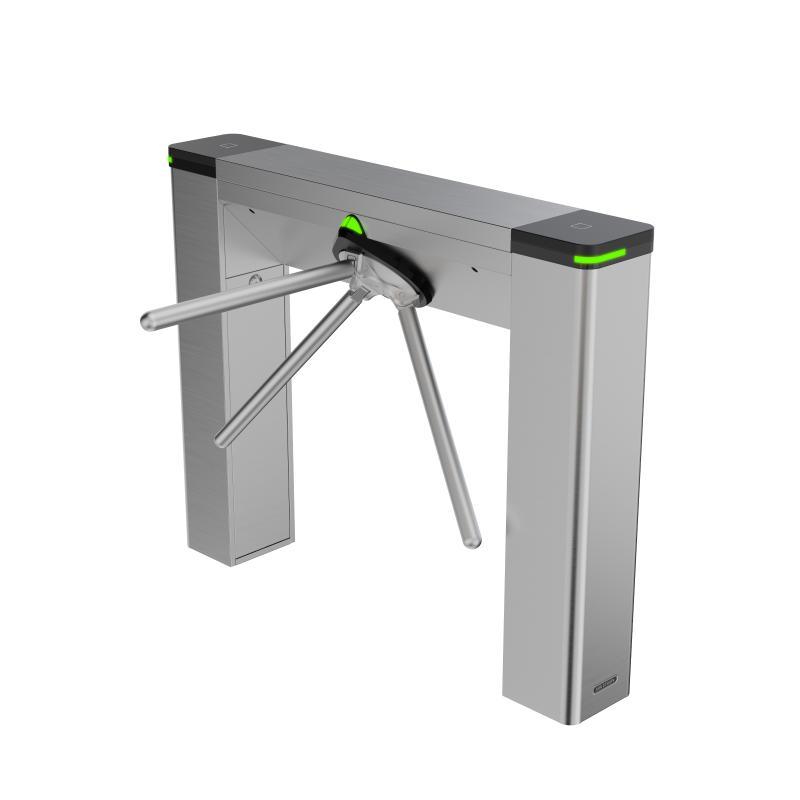

HIKVISION DS-K3G501BLX Pro Tripod Turnstile 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3G501BLX
Pro Tripod Turnstile
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Motor/
- MCBF≥ 3 million times
- Network
- Wired network/
- Interface
- Exit buttonx 2
- Fire alarm input1
- Hardware
- Access controllerNot supplied
- Function
- Audio promptNot support
- Keypad configurationSupport
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material1.2 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1.5 mm
- Power consumptionStandby: 15 W Working: 30 W Peak: 40 W
- Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 232 mm × 960 mm × 1208 mm (9.1″ × 37.8″ × 47.6″) With package: 410 mm × 1180 mm × 1350 mm (16.1″ × 46.5″ × 53.1″)
- Without package: 41.78 kg (92.11 lb)With package：51.45 kg(113.43lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz
- Configuration
- Module selectionNO
- Application environmentOutdoor (waterproof)
