描述

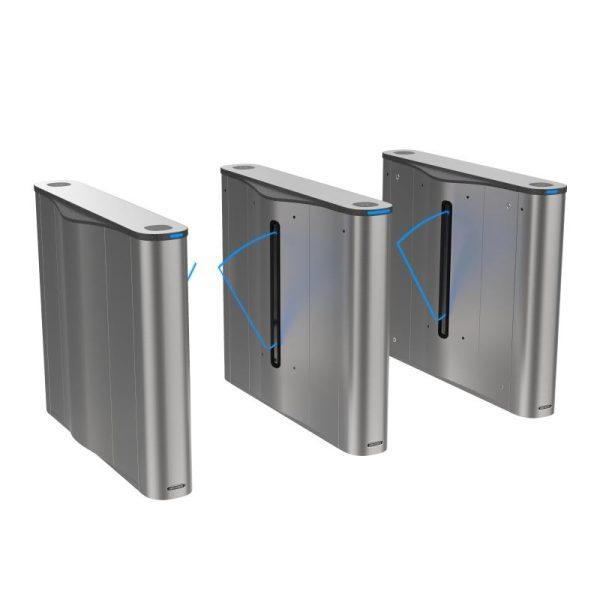

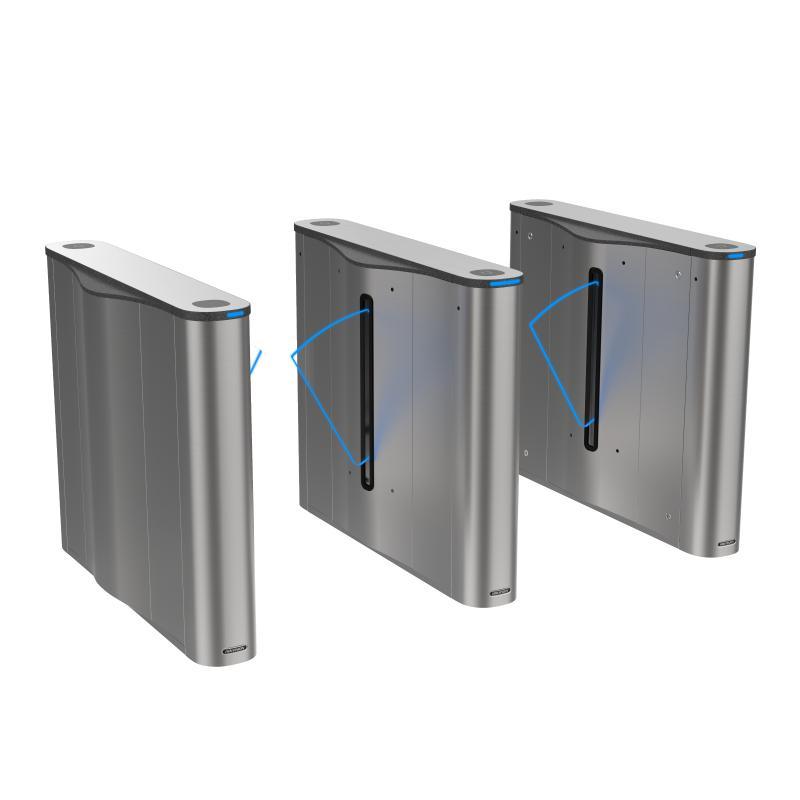

HIKVISION DS-K3Y411BX Value Flap Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3Y411BX
Value Flap Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBrushless motor
- MCBF≥ 3 million times
- IR light detectors6 pairs
- Interface
- Network interface1
- Lock control2
- Exit buttonMain: 1 Sub: 1
- Alarm output2
- RS-485Main: 2 Sub: 2
- RS-232Main: 1 Sub: 1
- Wiegand2
- Fire alarm input1
- Hardware
- Access controllerSupplied
- Capacity
- Card capacity500,000
- Event capacity500,000
- Authentication
- Card TypeM1 card or EM card
- General
- Throughput20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material12 mm acrylic glass
- Pedestal materialSUS304 stainless steel 1.2 mm
- Power consumptionStandby: 40 W Working: 80 W Peak: 130 W
- Working temperature -20 °C to 70 °C (-4 °F to 158 °F)
- Working humidity10% to 95% (No condensing)
- DimensionsWithout package: 1206 mm × 315.2 mm × 990 mm (47.48″ × 12.41″ × 38.98″) With package: 1340 mm × 415 mm × 1090 mm (52.76″ × 16.34″ × 161.02″)
- Net: Left: 45.59 kg (99.21 lb) Middle: 55.79 kg (123.00 lb) Right: 48.33 kg(106.55 lb) Gross: Left: 82.72 kg (182.37 lb) Middle: 93.10 kg (205.25 lb) Right: 85.64 kg (188.80 lb)
- Power supply methodPower supply: 100 to 240 VAC~, 50/60 Hz, 0.7 A
- Configuration
- Lane width550
- Pedestal length1206 mm
- Module selectionYES
- Pedestal width315 mm
- Wall distance20 mm
- BaseYES
- Barrier materialAcrylic glass
- Application environmentIndoor and Outdoor
- Authentication modeCard;Face
- Card typeEM;M1
- Recommended width550 mm
- Base modelDS-KSM02/Y411
- Product typeFlap barrier
- Remote controller type433Mhz;868Mhz
- Convert FaceNO
- Door wing gapDefault:50mm
