描述

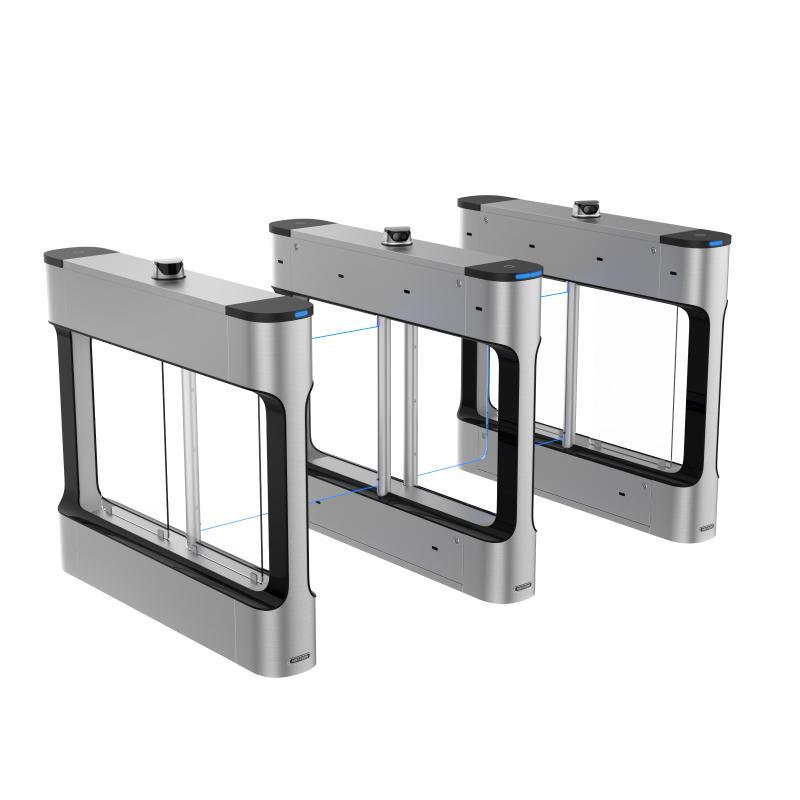

HIKVISION DS-K6B411TX Value Smart Swing Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K6B411TX
Value Smart Swing Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBrushless Motor
- MCBF≥ 5 million times
- BrakeNot support
- Door open duration5 to 60 sec
- dToF sensor× 6
- Video
- LensDual lens
- Video compression standardH.264
- Resolution2 MP
- FOVHorizontal: 75° Vertical: 139°
- WDRSupport
- Video standardPAL by default, support NTSC
- Audio
- Audio compression standardG.711U
- Audio compression bitrate64 Kbps
- Audio outputSupport
- Volume adjustmentSupport
- Power output5.5W
- Network
- Wired networkSupport,10M/100M
- Wi-FiFor AP mode only
- Interface
- Network interface1
- Lock control0
- Exit button2
- Alarm output4
- RS-4852
- RS-2320
- Wiegand0
- USB2
- Fire alarm input2
- Case input2
- Hardware
- Access controllerSupplied
- SupercapacitorSupplied
- Network switchNot supplied
- Capacity
- Face capacity100,000
- Card capacity200,000
- Event capacity100,000
- Authentication
- Face recognition distance0 m to 2 m
- Face recognition accuracy rate＞99%
- Face recognition duration＜200 ms
- Card TypeEM card or M1 card (actual corresponding card type refer to product model names)
- Card reading frequency13.56 MHz or 125 KHz
- Card reading distance3cm
- Card reading duration＜1s
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Hik-ConnectSupport
- Multi-factor authenticationSupport
- Face anti-spoofingSupport
- Built-in face recognitionSupport
- Communication protocolISAPI,TCP/IP
- General
- Lane width550 mm to 1100 mm (21.65″ to 43.31″)
- Barrier material8 mm acrylic glass
- Pedestal materialSUS304 stainless steel 1.2 mm
- IndicatorLane status indicator, authentication indicator and barrier light
- Power consumption100 W
- Working temperature -15 °C to 65 °C (5 °F to 149 °F)
- Working humidity10% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 1205 mm × 199 mm × 1072 mm (47.44″ × 7.83″ × 42.21″) With package: 1405 mm × 345 mm × 1195 mm (55.31″ × 13.58″ × 47.05″)
- Net: Left: 34.42 kg (75.88 lb) Middle: 35.53 kg (78.33 lb) Right: 34.2 kg(75.48 lb) Gross: Left: 41.48 kg (91.45 lb) Middle: 42.59 kg (93.89 lb) Right: 41.26 kg (90.96 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodM: 100-120V~/200-240V~,50Hz/60Hz,1.6A L/R: 100-240V~,50Hz/60Hz,0.8A
- LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
- Interconnecting cable length5.5m
- Configuration
- Lane width650;750;900;1100
- Pedestal length1200 mm
- Module selectionYES
- Pedestal width200 mm
- Wall distance20 mm
- BaseYES
- Barrier materialAcrylic glass;Stainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeQR code;Face;Card
- Card typeM1;EM
- Recommended width650 mm
- Base modelDS-KSM01/B411
- Product typeSwing barrier
- Remote controller type433Mhz;868Mhz
- Built-in face recognitionYES
- Convert FaceNO
- Door HeightDefault(0.77m)
- Door wing gapDefault:50mm
- Integrated AuthCard;Face
