描述

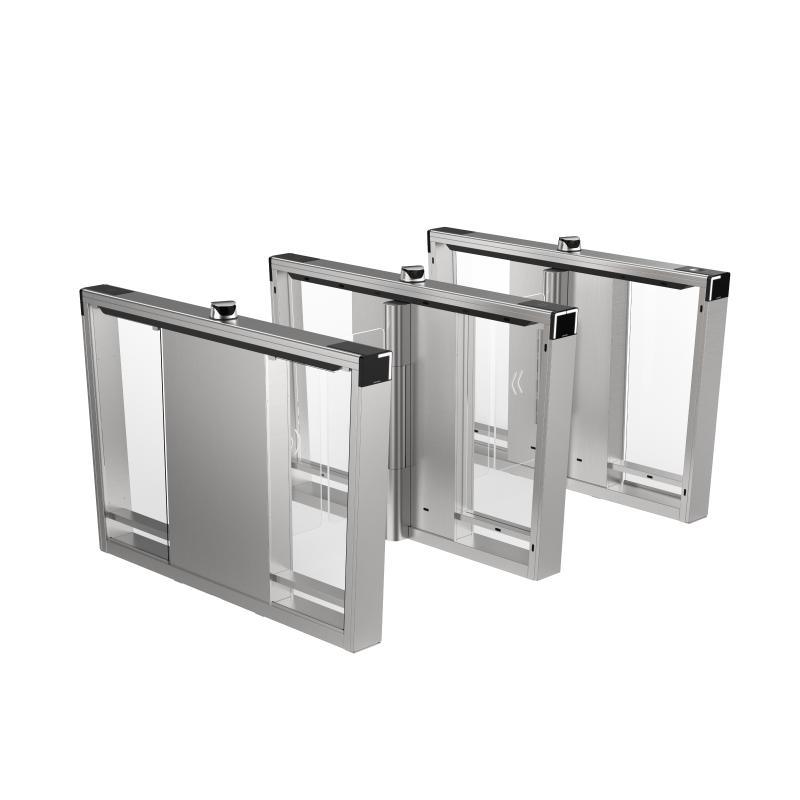

HIKVISION DS-K6B530TX Smart Pro Swing Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K6B530TX
Smart Pro Swing Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorServo motor
- MCBF≥ 12 million times
- dToF sensor× 14
- Video
- LensDual lens
- Video compression standardH.264
- Resolution2 MP
- FOVHorizontal: 75° Vertical: 139°
- WDRSupport
- Video standardPAL by default, support NTSC
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-FiFor AP mode only
- Interface
- Network interface× 1
- Alarm output× 4
- RS-485Main: 1 Sub: 1
- RS-232Main: 1 Sub: 1
- WiegandMain: 1 Sub: 1
- USBMain: 1 Sub: 1
- Fire alarm input1
- Case inputMain: 1 Sub: 1
- Hardware
- Access controllerSupplied
- SupercapacitorSupplied
- Network switchNot supplied
- Capacity
- Face capacity100,000
- Card capacity200,000
- Event capacity100,000
- Authentication
- QR codeOptional
- Face recognition distance0.5 m to 2 m
- Face recognition accuracy rate＞99%
- Face recognition duration＜200 ms
- CardEM card or M1 card or Desfire card (actual corresponding card type refer to product model names)
- Card reading frequency13.56 MHz or 125 KHz
- Card reading distance0 to 3 cm
- Card reading duration＜1 sec
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Hik-ConnectSupport
- Multi-factor authenticationSupport
- Face anti-spoofingSupport
- Face mask recognitionSupport
- Built-in face recognitionSupport
- Communication protocolISAPI
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm to 1400 mm (21.65″ to 55.12″)
- Barrier material10 mm acrylic glass
- Pedestal materialSUS304 stainless steel with the thickness of 1.2 to 1.5 mm (0.05″ to 0.06″)
- IndicatorLane status indicator, authentication indicator, barrier light, etc.
- Power consumptionStandby: 70 W Working: 120 W Peak: 160 W
- Working temperature-20 °C to 70 °C (-4 °F to 158 °F)
- Working humidity10% to 95% (No Condensing)
- Protective levelIPX4
- DimensionsWith packaging: 1600 mm × 400 mm × 1283 mm (63.0″ × 15.7″ × 50.5″) Without packaging: 1500 mm × 130 mm × 1000 mm (59.1″ × 5.1″ × 39.4″)
- Net: Left: 62.78 kg (138.41 lb) Right: 64.78 kg(142.8 lb) Gross: Left: 101.18 kg (223.1 lb) Right: 103.18 kg (227.5 lb)
- Power supply method100-240V～,50Hz/60Hz
- LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
- Interconnecting cable length5.5 m
- USB configuration toolSupport
- Configuration
- Lane width650;750;900;1100
- Pedestal length1500 mm
- Module selectionYES
- Pedestal width130 mm
- Wall distance20 mm
- BaseYES
- Barrier materialAcrylic glass
- Application environmentIndoor and Outdoor
- Authentication modeCard;Face
- Card typeEM;Desfire
- Recommended width650 mm
- Base modelDS-KSM01/B530
- Product typeSwing barrier
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width72 mm
- Built-in face recognitionYES
- Convert FaceNO
- Door HeightDefault(0.85m);1.6m
- Door wing gapDefault:50mm
- Integrated AuthCard;Face
