描述

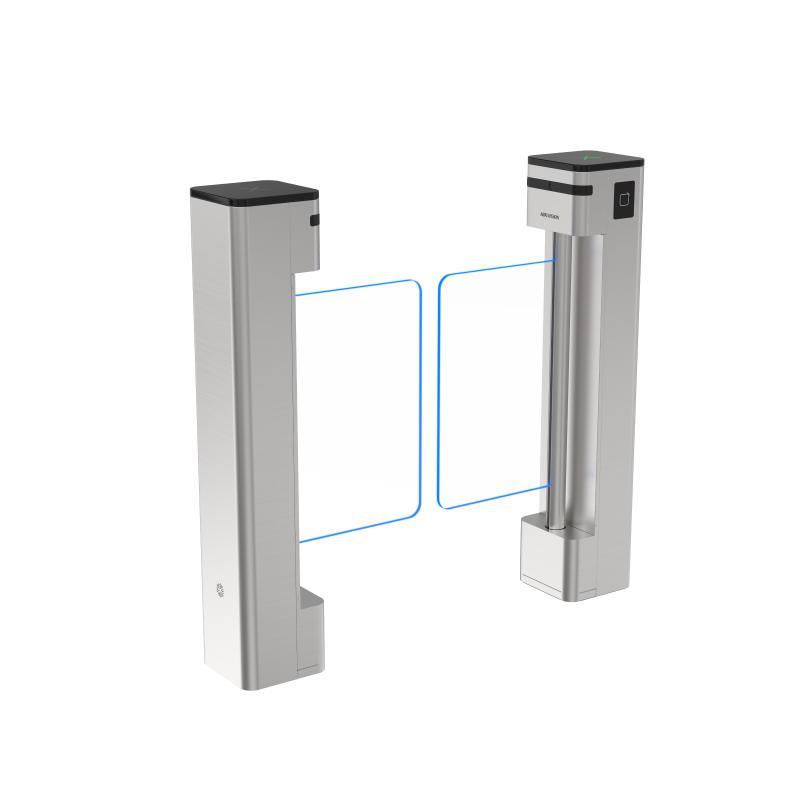

HIKVISION DS-K6BC402LX Value Swing Gates 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K6BC402LX
Value Swing Gates
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBLDC motor
- MCBF≥ 5 million times
- Operating systemNA
- BrakeNot support
- Door open duration5 to 60 sec
- IR connectionNot support
- dToF sensor2
- Audio
- Audio outputNot support
- Volume adjustmentNot support
- Power outputNot support
- Network
- Wired networkNot support
- Wi-FiNot support
- Interface
- Network interfaceNA
- Lock controlNA
- Exit button5
- Alarm outputNA
- TAMPERNA
- RS-485NA
- RS-232NA
- WiegandNA
- USBNA
- Fire alarm input1
- Case inputNA
- Counting outputNA
- Hardware
- Access controllerNot supplied
- SupercapacitorNot supplied
- Network switchNot supplied
- Capacity
- Card capacityNA
- Event capacityNA
- Person CapacityNA
- Function
- Configuration via PC WebNA
- Configuration via mobile WebNA
- Hik-ConnectNA
- Multi-factor authenticationNA
- Anti-passbackNA
- First person inNA
- Hik-Partner ProNA
- Audio promptNA
- Fingerprint recognitionNot support
- AP modeNA
- Communication protocolNA
- KeyfobSupport, 433 MHz/868 MHz, within 50 m
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm to 1400 mm (21.65″ to 55.12″)
- Pedestal materialSUS304 stainless steel 1mm
- IndicatorLane status indicator, authentication indicator and barrier light
- Power consumptionStandby: 20 W Working: 65 W Peak: 160 W
- Working temperature-15 °C to 65 °C (5 °F to 149 °F)
- Working humidity10% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 1002 mm × 200 mm × 200 mm (39.44″ × 7.87″ × 7.87″) With package: 1160 mm × 565 mm × 300 mm (45.66″ × 22.24″ × 11.81″)
- Net: 30 kg (66.14 lb) Gross: 34 kg (74.96 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodAdapter: 100 to 240 VAC~, 50/60 Hz, 0.8A
- Power supply for face recognition moduleSupport
