描述
HIKVISION DS-K7P01 是海康威視出門掣，安裝於門內側，配合電鎖及控制器。香港防盜為安裝商及經銷商。要核對常開／常閉接線及殘障高度。

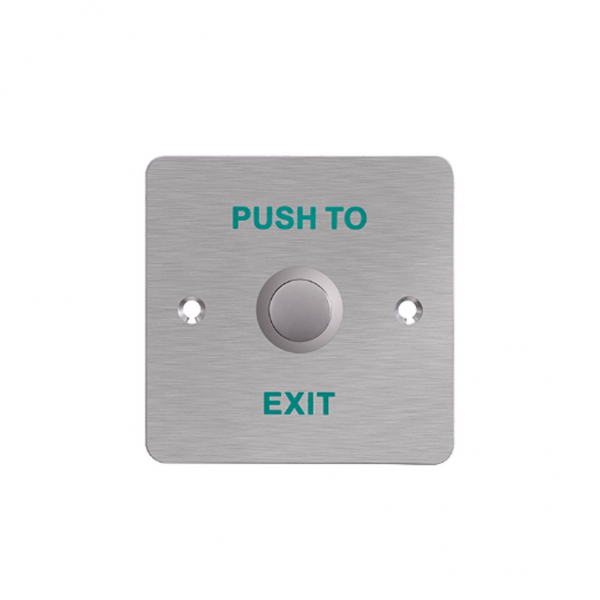

HIKVISION DS-K7P01
Exit Button
- Aluminum alloy panel, metal button
- Dimension(L×W×H): 86 × 86 × 20mm (3.39 × 3.39 × 0.79")
Specification
General
- Power supply : Max. 36 VDC, 3 A
- Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity : 0 to 95% (relative humidity)
- Dimensions : 86 mm × 86 mm × 28.9 mm (3.39" × 3.39" × 1.14")
- Material : Aluminum alloy panel with sandblast, metal button
- Signal output : NO/NC/COM contact
- Door type : Hollow doorframe and embedded-electric box
- Aging Test : Already passed 500 thousand times aging test
- Accessory : DS-KAS261
- Available Model : DS-K7P01
