描述

HIKVISION DS-K7P04 是海康威視出門掣，安裝於門內側，配合電鎖及控制器。香港防盜為安裝商及經銷商。要核對常開／常閉接線及殘障高度。

相關方案：海康門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

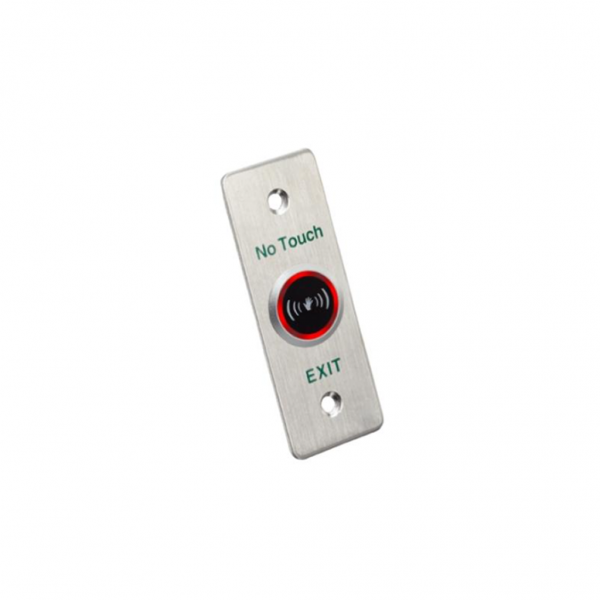

HIKVISION DS-K7P04

Exit & Emergency Button

Features

 T Dimension(L×W×H): 90×35×37.7mm(3.54×1.38×1.48″);
 Input Voltage: DC12V;
 Working Current: 20mA(standby), 50mA(working current);
 Current Rating: 1A@30VDC,0.5A@125VAC;
 Output Contact: NO/NC/COM Contact;
 Panel: aluminum panel;
 Aging Test: already passed 1 million times aging test;
 Suitable Doors: all kinds of narrow doorframes;
 Working Temperature: -20°C to +50°C (-4°F to 122°F);
 Working Humidity: 0 to 95% (relative humidity);
 Maximum Inductive Distance: 40 to 100mm(1.57 to 3.94″) (adjustable);
 LED Indicator Status: white/green/red LED, indicates power-off/active/Standby;
 Product Weight: 0.12kg (0.26lb).

Specification

General
Working temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Working humidity	0 to 95% (relative humidity)
Dimensions	90 mm × 35 mm × 37.7 mm (3.54″ × 1.38″ × 1.48″)
Weight	0.18 kg (0.40 lb)
Material	Panel: stainless steel
Power supply	30 VDC, 1 A
Door type	All kinds of narrow doorframes
Signal output	NO/NC/COM contact
Aging Test	Already passed 1 million times aging test
Exit Button
Current rating	1 A@30 VDC
Output contact	NO/NC/COM contact
Aging test	Already passed 1 million times aging test
Suitable door	All kinds of narrow doorframes
