描述
HIKVISION DS-K7P05 是海康威視出門掣，安裝於門內側，配合電鎖及控制器。香港防盜為安裝商及經銷商。要核對常開／常閉接線及殘障高度。

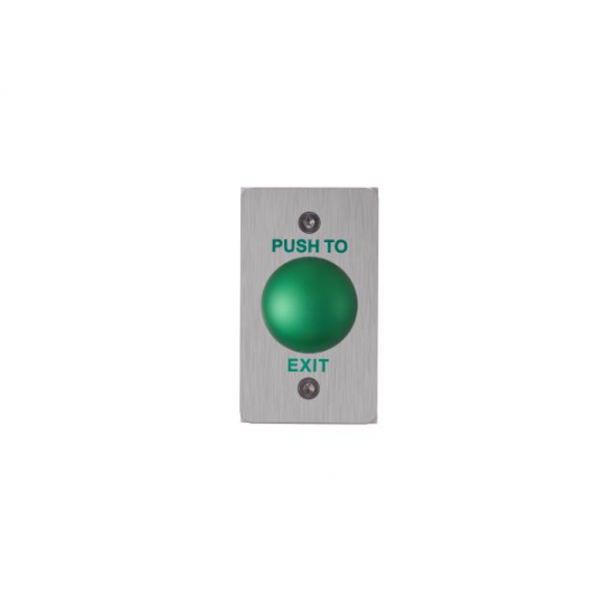

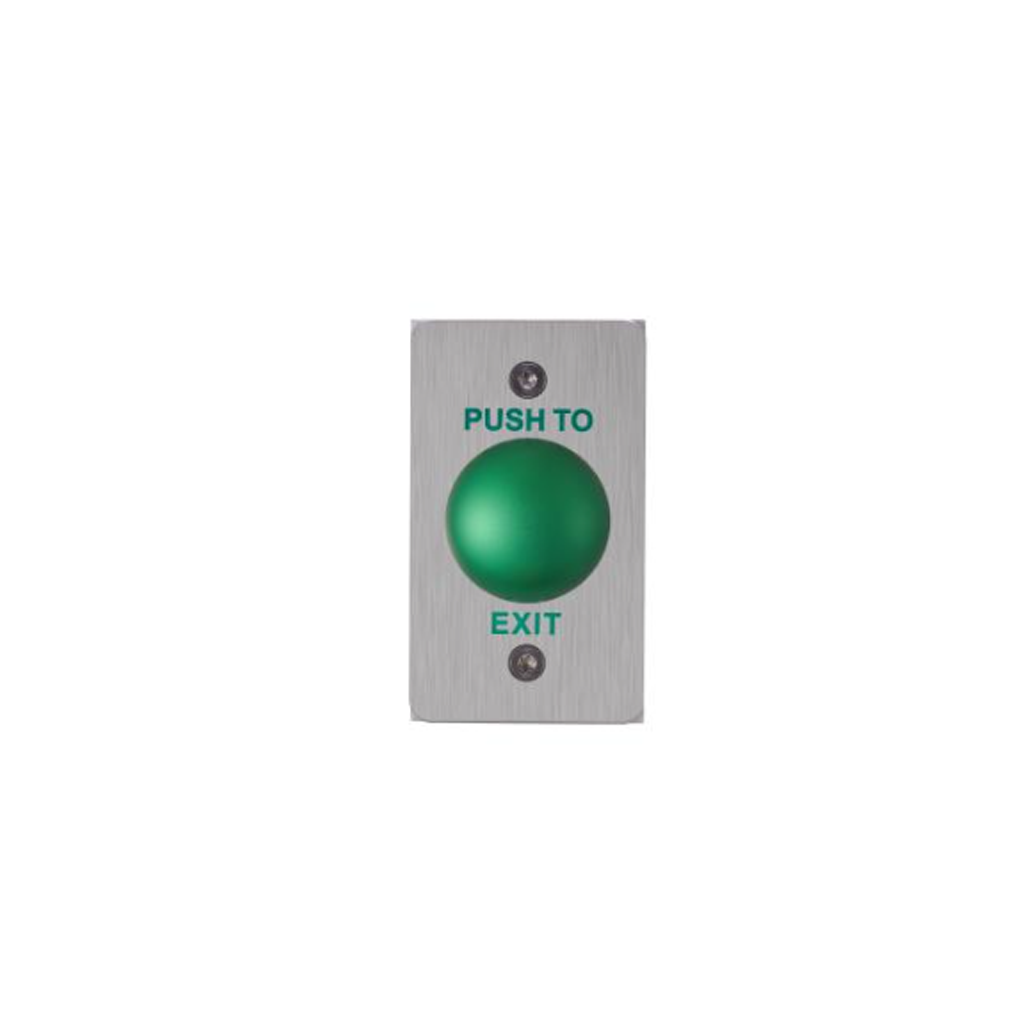

HIKVISION DS-K7P05
Exit & Emergency Button
Features
Structure: stainless steel panel, metal button, metal bottom case
Dimension(L×W×H): 90×35×54mm(3.54×1.38×2.13″).
Specification
| General | |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95% (relative humidity) |
| Dimensions | 86 mm × 50 mm × 44 mm (3.39″ × 1.97″ × 1.73″) |
| Weight | 0.14kg (0.31lb) |
| Material | Panel: stainless steel Button: metal Bottom case: polished zinc alloy with chromium electroplating |
| Power supply | Max. 36 VDC, 3 A |
| Door type | all kinds of doors |
| Signal output | NO/NC/COM Contact |
| Aging Test | already passed 500 thousand times aging test |
| Exit Button | |
| Current rating | 3A@36VDC Max |
| Output contact | NO/NC/COM Contact |
| Aging test | already passed 500 thousand times aging test |
| Suitable door | all kinds of doors |
