描述

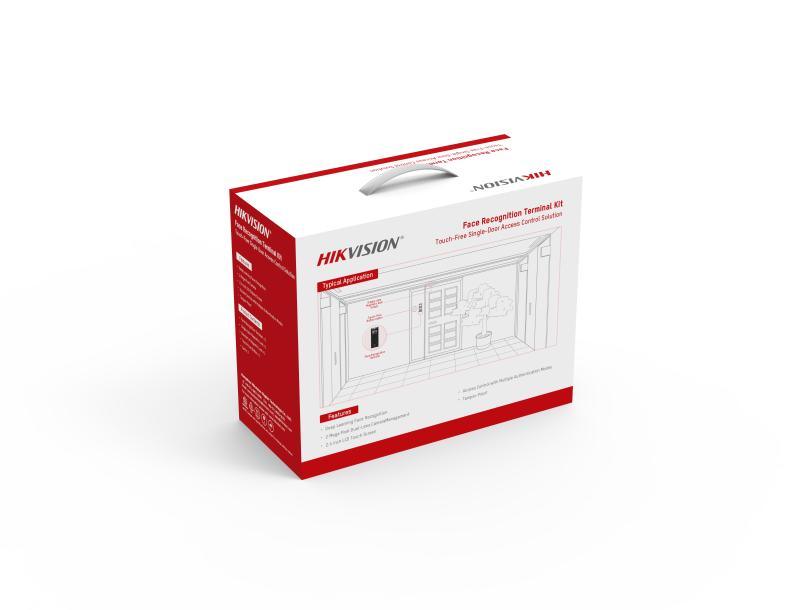

HIKVISION DS-KAS321 Face Recognition Terminal Kit 是海康威視人面門禁套裝。香港防盜為安裝商及經銷商。套裝內容及安裝方式以原廠規格為準。
DS-KAS321
Face Recognition Terminal Kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Face Recognition Terminal/System parameters
- ModelDS-K1T321MFWX
- Operating systemLinux
- Face Recognition Terminal/Display parameters
- Screen size2.4-inch
- TypeLCD
- Resolution320 × 240
- Face Recognition Terminal/Video parameters
- Lens× 1
- Resolution2 MP (video stream: 720 P)
- Video standardPAL (Default) and NTSC
- Face Recognition Terminal/Network
- Wired network10/100 M self-adaptive
- Wi-FiSupport, 2.4 G, 802.11b/g/n
- Face Recognition Terminal/Interface
- Network interface1 RJ-45
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- RS-4851 RS-485 (Half duplex, HIKVISION)
- Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
- USB1
- Face Recognition Terminal/Capacity
- User capacity500
- Face capacity500
- Fingerprint capacity3000
- Card capacity3000
- Event capacity150,000
- Face Recognition Terminal/Authentication
- Face recognition distance0.3 to 1.5 m
- Face recognition accuracy rate＞99%
- Face recognition duration＜ 0.2 s
- Fingerprint recognition duration＜ 1 s
- Card typeM1 card
- Card reading frequency13.56 MHz
- Card reading distance0 to 5 cm
- Card reading duration＜ 1 s
- Face Recognition Terminal/Function
- Face anti-spoofingSupport
- Face Recognition Terminal/General
- Supplement lightWhite light
- Power supply12 VDC
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity0 to 90% (No condensing)
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
- Magnetic Lock/General
- ModelDS-K4H255S
- Unlock methodCurrent interruption
- Maximum holding forceMax. 272 kg (600 Lbs)
- Power supply 12 VDC to 24 VDC, 470 mA to 235 mA
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity0 to 95 % (relative humidity)
- DimensionsLock Body: 250 mm × 28 mm × 48 mm (9.8″ × 1.1″ × 1.9″) Armature Plate: 180 mm × 38 mm × 12 mm (7.1″ × 1.5″ × 0.5″)
- 1.9 kg (4.2 lb)
- Suitable doorGlass door, wooden door, and metal door
- Shell performanceHard Anodizing Electroplating Operated
- Lock bodyEco-friendly Zinc Electroplating Operated
- Armature plateEco-friendly Zinc Electroplating Operated
- Card/General
- ModelFM11RF08-M1
- RAM1 K byte
- Card reading frequency13.56 MHz
- Card propertyThin card
- FunctionRead/write
- Card reading distance≤10 cm
- Working temperature-20 °C to 75 °C (-4 °F to 167 °F)
- Bracket of Magnetic Lock/General
- DimensionsL-bracket: 250 mm × 46 mm × 30 mm (9.8″ × 1.8″ × 1.2″) Z-bracket: 180 mm × 47 mm × 47 mm (7.1″ × 1.9″ × 1.9″)
- ModelDS-K4H255-LZ
- Suitable DoorWooden Door, Glass Door, Metal Door
- Shell performanceHigh strength aluminum alloy surface sandblasting oxidation
- 0.5 kg (1.1 lb)
- Exit Button/General
- ModelDS-K7P07
- Power supply12 VDC to 24 VDC
- Working temperature-20 °C to 55 °C (-4 °F to 131 °F)
- Working humidity0 to 95% (relative humidity)
- Dimensions115 mm × 70 mm × 16 mm (4.53″ × 2.76″ × 0.63″)
- 0.13 kg (0.27 lb)
- MaterialPanel: stainless steel
- Output contactNO/NC/COM contact
- Suitable doorHollow door frame (concealed installation)
