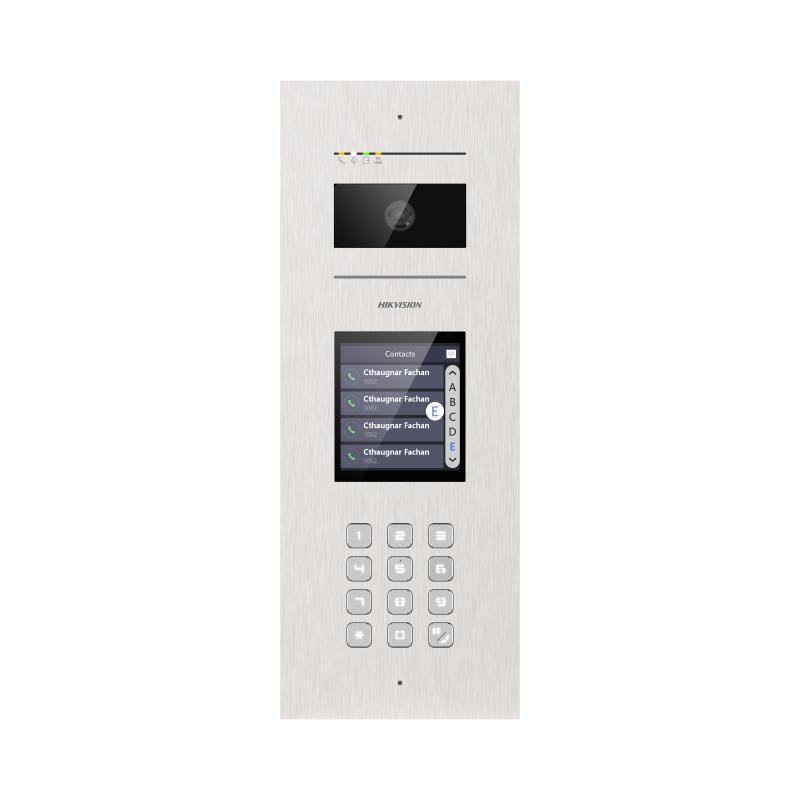

HIKVISION DS-KD7003EY-S2 2-wire HD audio door station 是海康威視模組化對講門口機，大堂可按顯示、按鍵或讀卡模組組合。香港防盜為安裝商及經銷商。框及模組要以原廠規格為準。
DS-KD7003EY-S2
2-wire HD audio door station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemEmbedded Linux operation system
- ROM4 GB
- RAM256 MB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size4-inch
- Operation methodCapacitive touch screen
- TypeIPS
- Resolution480 × 480
- Video parameters
- Lens1
- Resolution2 MP
- FOVHorizontal: 133°, Vertical: 82°, Diagonal: °
- Wide dynamic range (WDR)Support
- Supplement lightLow illumination, IR supplement lights
- Video standardH.264
- Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio compression standardG.711 U, G.711 A
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Linked indoor station capacityMax.400
- Sub door station capacity16
- Network parameters
- Wi-FiOnly AP mode for configuration
- BluetoothNA
- 3G/4GNA
- Device interfaces
- Alarm input2（Supports Exit button or Door contact input）
- Exit button1
- RS-485 2 (For module connection)
- WiegandNA
- TF cardNA
- Alarm outputNA
- Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Door contact input1
- Two-Wire IP interface1
- Power interface48V，Powered by distributor DS-KAD7060EY or 12VDC
- General
- Button12 physical button(s)
- InstallationFlush mounting
- Indicator4（Opening door, Calling, Intercom, In use）
- Without package: 2582 g (5.69 lb),With package: 2962g (6.53 lb)
- Protective levelIP65, IK08
- Working temperature-20 °C to 55 °C (-4 °F to 131 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)35.9 mm × 13.4 mm × 3.4 mm (1.41″ × 0.53″ × 0.13″)
- BatteryNA
- Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
- Application environmentOutdoor
- Power consumption≤ 6 W
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
