描述

HIKVISION DS-KD8003-IME1(B)/NS 是海康威視模組化對講門口機，大堂可按顯示、按鍵或讀卡模組組合。香港防盜為安裝商及經銷商。框及模組要以原廠規格為準。

相關方案：視像對講系統、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

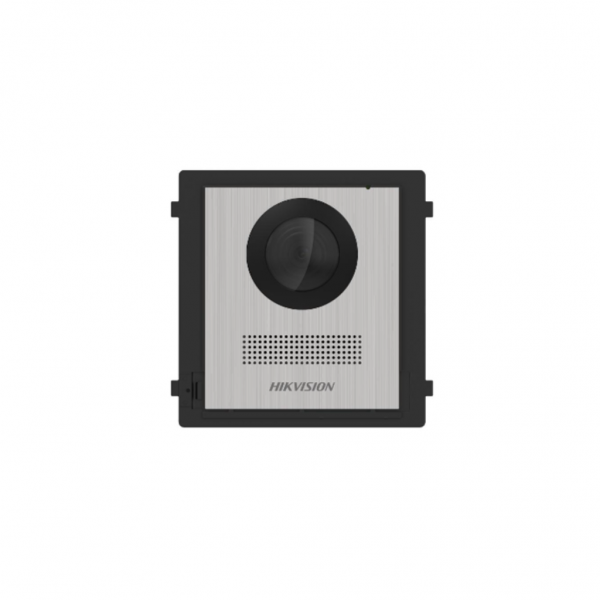

HIKVISION DS-KD8003-IME1(B)/NS

KD8 Series Pro Modular Door Station

Features

 Main unit of modular door station
 2 MP fisheye camera with IR supplement
 Two-lock control
 Standard PoE power supply
 IP65 protection level
 Convenient configuration via Web remotely
 Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
 Stainless Steel high quality material

Specifications

System parameters
Operation system	Linux
ROM	32 MB
RAM	256 MB
Processor	Embeded high performance processor
Video parameters
Lens	2 MP HD camera
Resolution	2 MP
FOV	Horizontal: 146°, Vertical: 82°
Wide dynamic range (WDR)	Support
Supplement light	Low illumination, IR supplement lights
Video compression standard	H.264
Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio compression standard	G.711 U/G.711 A
Audio output	1 built-in loudspeaker
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
User capacity	2000
Card capacity	6000
Linked indoor station capacity	500
Sub door station capacity	16
Network parameters
Network protocol	TCP/IP, RTSP
Device interfaces
Alarm input	4 (2 exit butttons and 2 door contacts by default)
Network interface	1 RJ-45, 10/100 Mbps self-adaptive
TAMPER	1
Exit button	2 (2 for lock control)
RS-485	1 (1 for Hikvision’s sub module communication)
Lock control	2 relays, Max. 30 VDC, 2 A
Door contact input	2
General
Installation	Surface mounting, flush mounting
Weight	Net weight: 410 g Gross weight: 581 g
Protective level	IP65
Working temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Working humidity	10% to 95% (no-condensing)
Dimension (W × H × D)	98 mm × 100 mm × 42 mm (3.86″ × 3.94″ × 1.65″)
Power supply	12 VDC, 500 mA, IEEE 802.3af, PoE
Application environment	Outdoor
Power consumption	≤ 5 W
