HIKVISION DS-KD9203-MFTE6 Facial Recognition Door station 是海康威視模組化對講門口機，大堂可按顯示、按鍵或讀卡模組組合。香港防盜為安裝商及經銷商。框及模組要以原廠規格為準。

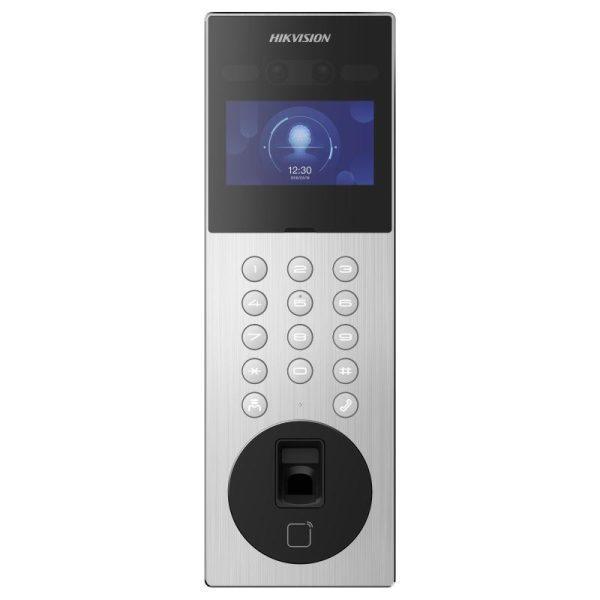

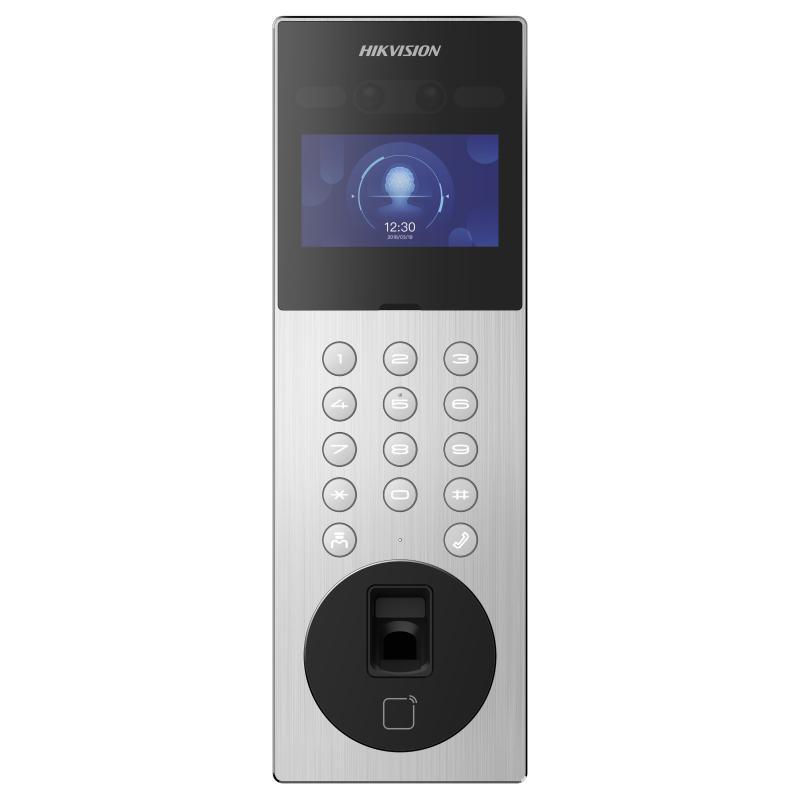

DS-KD9203-MFTE6
Facial Recognition Door station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemLinux
- ROM4 GB
- RAM1 GB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size4.3-inch
- Operation method/
- TypeColorful LCD
- Resolution800 × 480
- Video parameters
- Lens2 × 2 MP HD camera
- ResolutionMain stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps
- FOVHorizontal: 107°, Vertical: 58°, Diagonal: 126°
- Wide dynamic range (WDR)Digital WDR/120 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264; H.265; MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity20,000
- Face capacity20,000
- Card capacity100,000
- Fingerprint capacity5000
- Network parameters
- Network protocolTCP/IP, RTSP, IPV6, ONVIF
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Device interfaces
- Alarm input4
- Network interface1 RJ-45 10/100/1000 Mbps self-adaptive
- TAMPER1
- Exit button1
- RS-4852 RS-485 (Half duplex, HIKVISION)
- USB/
- Wiegand/
- TF card/
- Alarm output/
- Lock control2 relays, Max. 30 VDC, 2 A
- Door contact input1
- General
- ButtonPhysical buttons
- InstallationFlush mounting
- Indicator/
- Net weight: 1.23 kg Gross weight: 1.515 kg
- Protective levelIP65
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)373 mm × 124 mm × 43.7 mm (14.69″ × 4.88″ × 1.72″)
- Power supply12 VDC, 1.5 A
- Application environmentOutdoor
- Power consumption≤ 13 W
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
