描述

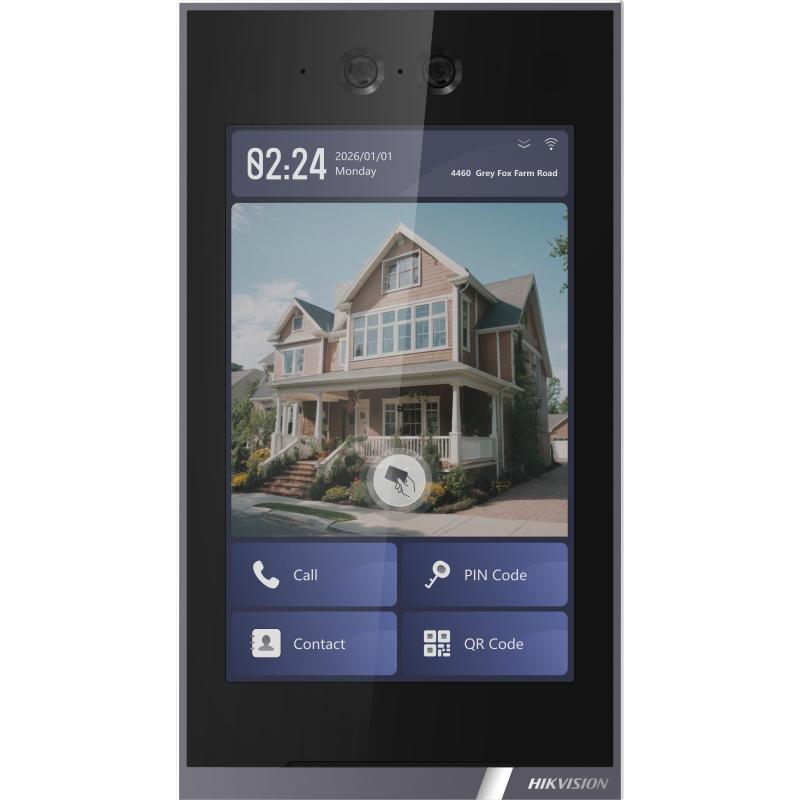

DS-KD9434-E1
9 series apartment door station
DS-KD9434-E1 屬海康威視視像對講產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System parameters
| Operation system | Android 14 |
|---|---|
| ROM | 8 GB |
| RAM | 2 GB |
| Processor | Embedded high performance processor |
Display parameters
| Screen size | 8-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful IPS |
| Resolution | 1280 × 800 |
Video parameters
| Lens | 2 |
|---|---|
| Resolution | Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) |
| FOV | Horizontal: 95.7°, Vertical: 51.5°, Diagonal: 115.4° |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 |
Audio parameters
| Audio input | 2 built-in omnidirectional microphones |
|---|---|
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 |
| Audio output | 2 built-in loudspeakers |
| Audio compression bitrate | 8~64Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio Performance | 50cm, 85dB |
| Audio Sample Rate | 8kHz, 16kHz |
Capacity
| User capacity | 20000 |
|---|---|
| Face capacity | 10000 |
| Card capacity | 100000 |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
Network parameters
| Network protocol | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, UDP, WebSocket, ONVIF, SIP v2 (RFC3261) |
|---|---|
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | / |
| Wi-Fi Protocol | / |
| Wi-Fi Type | / |
Authentication
| Authentication mode | Face, Card, PIN code, QR code, Indoor station, Hik-Connect |
|---|---|
| Card type | M1 Card |
| Card reading frequency | 13.56 MHz |
| Face recognition distance | 0.3 to 2 m |
| Card reading distance | 2 cm |
| Face anti-spoofing | Support |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition duration | ＜ 0.3 s per person |
Application
| Mobile APP | Hik-Connect |
|---|---|
| Motion Detection | Support |
| Call Elevator | Support (Max. 16 channels) |
Device interfaces
| Alarm input | 4 (include exit button and door contact input) |
|---|---|
| Network interface | 1 RJ-45, 10/100/1000 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | Max 2 |
| RS-485 | 1 |
| USB | 1 (only for peripheral module) |
| Wiegand | 1 |
| Alarm output | 1 (reserved) |
| Lock control | 2 relay, Max. 30 VDC 1A. The electric lock requires a separate power supply. |
| Door contact input | Max 2 |
General
| Application environment | Outdoor |
|---|---|
| Installation | Surface mounting & Flush mounting |
| Protective level | IP65 |
| Storage temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Battery | / |
| Dimension (W × H × D) | 138 mm × 247 mm × 25 mm (4.53" × 8.10" × 0.82") |
| Power consumption | ≤ 24 W |
| Power supply | 12 VDC, 2 A, IEEE 802.3at, standard PoE (Not for electric lock power supply.) |
| Material | Rear Shell Material: Plastic Front Shell: Aluminum Alloy |
| Language | English, Arabic, Russian, Latin American Spanish, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Dutch, Serbian, Mongolian, Vietnamese, Traditional Chinese |
