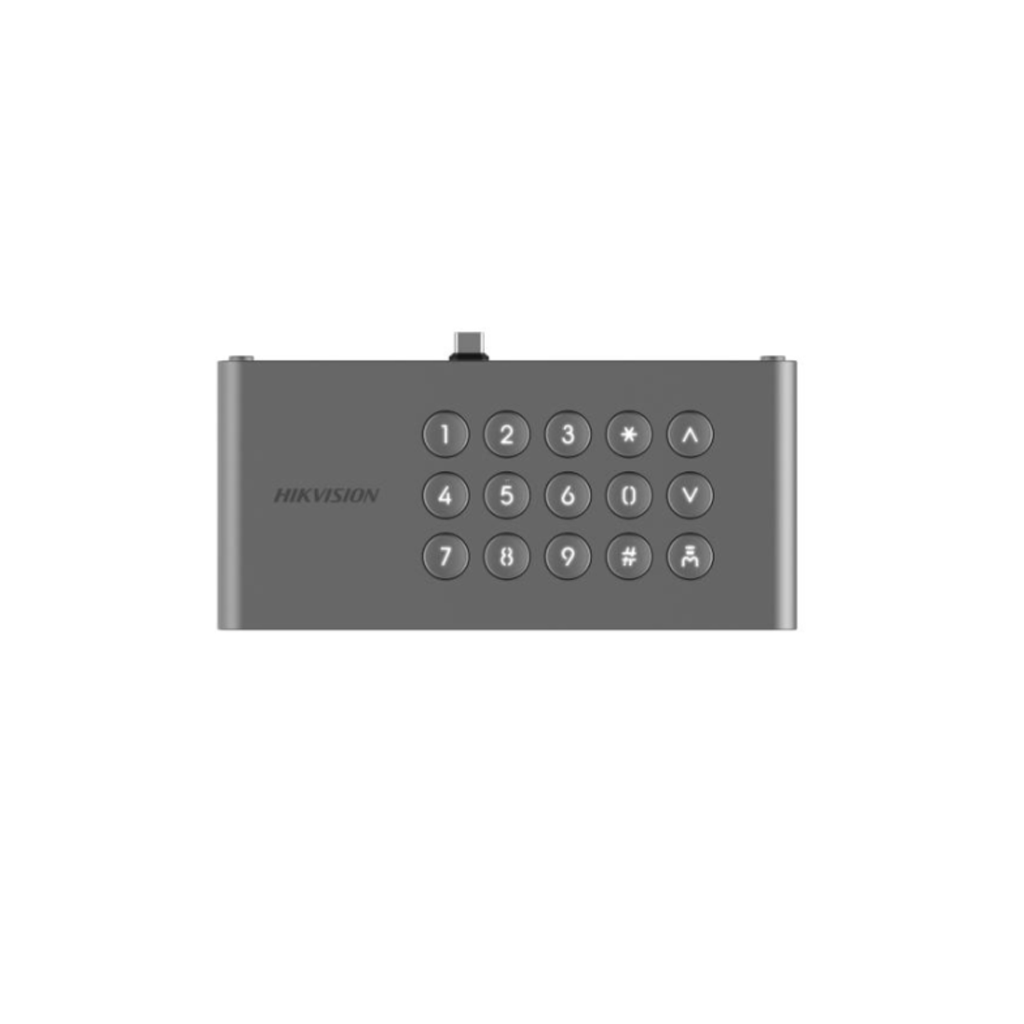

HIKVISION DS-KDM9633-KP
Sub Module
Features
Keypad module for KD9633 series door station
Backlight compensation behind the keypad
IP65 & IK07 high protection level
Easy to use and extend
Specifications
| Device interfaces | |
| USB | 1 USB type-C, only connect to KD9633 |
| General | |
| Button | 15 physical buttons |
| Installation | Surface mounting and flush mounting |
| Weight | Net weight: 0.335 kg Gross weight: 1.637 kg |
| Protective level | IP65 and IK07 |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 74 mm × 159.2 mm × 29.2 mm (2.9″ × 6.3″ × 1.1″) |
| Power supply | 5 VDC, 0.5 A |
| Application environment | Outdoor |
| Material | Aluminum alloy and plastic |
