描述
HIKVISION DS-KEP311X-ZJ Panic Alarm Tower 是海康威視緊急／求助對講，用於電梯廳、車場或周界。香港防盜為安裝商及經銷商。並非大堂訪客對講。規格以下方原廠資料為準。

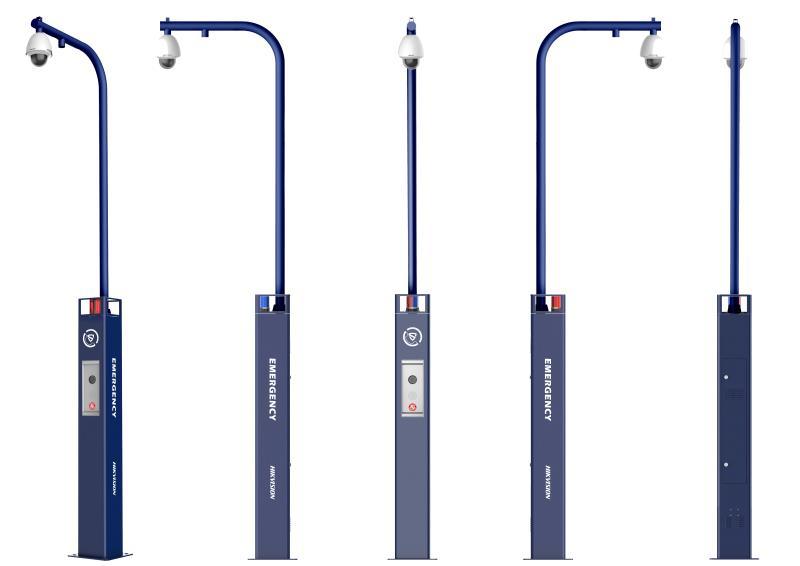

DS-KEP311X-ZJ
Panic Alarm Tower
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Hardware features
- Electrical lockerNormal cabinet lock
- Tamper-ProofTamper alarm
- Network interface10M/100M adaptive Ethernet port
- Audio interface1-ch built-in Omnidirectional microphone, pickup distance: 5 m 1-ch 3.5 mm audio interface for external audio input
- BusRS-485 1, half-duplex
- SD cardStandard microSD card slot, supports microSD/SDHC/SDXC card, Max. 256 G
- Loudspeaker1-ch 30 W built-in loudspeaker Sound can be configured separately
- Video
- Resolution2560*1440
- Field angleHorizontal field of view: 128°
- Frame ratePAL: 25fps；NTSC:20fps
- Day/night switch modeICR auto-switch
- Audio
- Audio input1-ch built-in omnidirectional microphone, pickup distance: 5 m 1-ch 3.5 mm audio interface for external audio input
- Audio output1-ch 30 W build-in loudspeaker 1-ch 3.5 mm audio interface for external audio output
- Intercom1-ch built-in omnidirectional microphone, pickup distance: 5 m
- Audio compression code rate16Kbps;64Kbps
- Electrical characteristics
- Operation temperature-40 °C to 70 °C (-40 °F to 158 °F)
- Power supply110 to 220 VAC
- Operation humidity10% to 90%
- Power consumption≤ 70 W
- General
- IP rateIP65
- Dimension (W×H×D)Without bracket: 400 mm × 400 mm × 2200 mm With bracket: 400 mm × 400 mm × 4500 mm
- Installation methodGround mounting
- Device management
- Alarm input2
- Alarm output2
- Camera4 MP HD IR colorful camera
- Sounder output1-ch 30 W Build-in Loudspeaker+ 1-ch 3.5 mm external output
- Lamp1 red and blue alarm lamp, light can be configured separately
