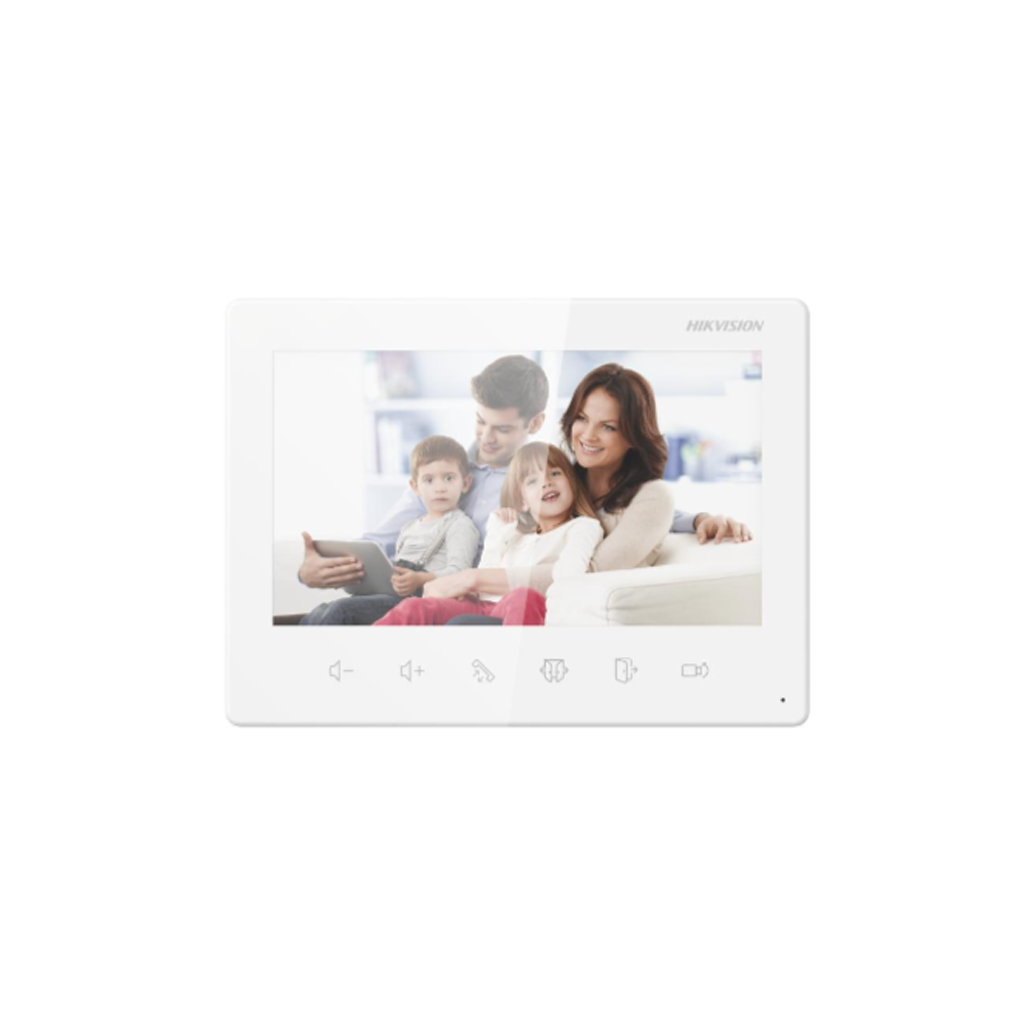

HIKVISION DS-KH1200
Video Intercom Two-Wire Analog Indoor Station
Features
2-wire plug & play analog indoor station
7-inch TFT screen with 1024 × 600 resolution
Receive video call and unlock via indoor station
Specifications
System parameters | |
Operation system | Embedded Analog operation system |
Display parameters | |
Screen size | 7-inch |
Operation method | Non-touch |
Type | TFT |
Resolution | 1024 × 600 |
Audio parameters | |
Audio input | Built-in omnidirectional microphone |
Audio output | Built-in loudspeaker (more than 80 dB within 20 cm) |
Volume adjustment | Adjustable with touch buttons |
Capacity | |
Linked network camera capacity | 1 |
Linked indoor extensions capacity | 2 |
Linked doorphone capacity | 2 |
Device interfaces | |
DIP switch | 2, ring duration can be set via DIP switch |
General | |
Button | 6 touch buttons |
Installation | Surface mounting |
Weight | Net weight: 334.6 g Gross weight: 874.4 g |
Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
Working humidity | 10% to 90% |
Dimension (W × H × D) | 187 mm × 137 mm × 25.4 mm (7.36″ × 5.39″ × 1.00″) |
Application environment | Indoor |
Power consumption | ≤ 5 W |
