描述
HIKVISION DS-KH6320-TE1(B) KH6 Series IP-Based Indoor Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

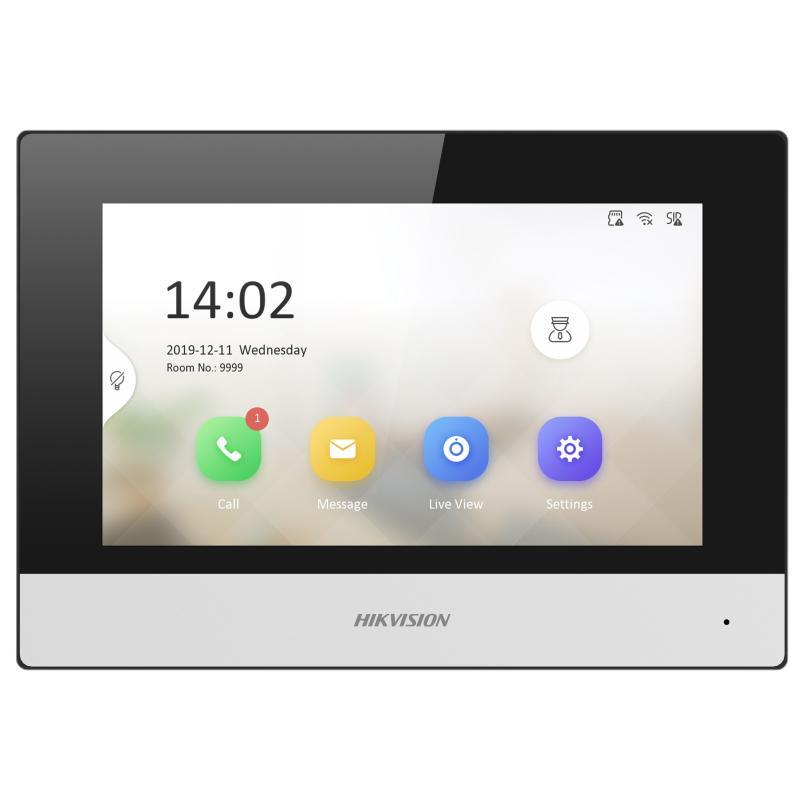

DS-KH6320-TE1(B)
KH6 Series IP-Based Indoor Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size7-inch colorful TFT screen
- Operation methodCapacitive touch screen
- TypeColorful TFT screen
- Resolution1024 × 600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standard/
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacityTF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity200
- Linked network camera capacity16
- Linked indoor extensions capacity16
- Linked doorphone capacity17
- Network parameters
- Network protocolTCP/IP, RTSP, SIP, IPv6, ONVIF
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100Mbps self-adaptive
- TAMPER/
- RS-485/
- USB/
- TF cardSupport TF card, up to 128 GB
- Alarm output/
- Power supply outputMax. 12VDC 0.2 A (Only when powered by PoE)
- Debugging port1
- Relay/
- General
- Button/
- InstallationSurface mounting
- Indicator/
- Without package: 340 g (0.75 lb),With package: 600 g (1.32 lb)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (non-condensing)
- Dimension (W × H × D)200 mm × 140 mm × 23.3 mm (7.87″ × 5.51″ × 0.92″)
- Battery/
- Application environmentIndoor
- Power supplyIEEE 802.3af, Standard PoE,12 VDC
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Power consumption≤ 12 W
- MaterialPlastic casing
