描述
HIKVISION DS-KH6352-WTDE6(B) 4-Wire Hybrid HD Indoor Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

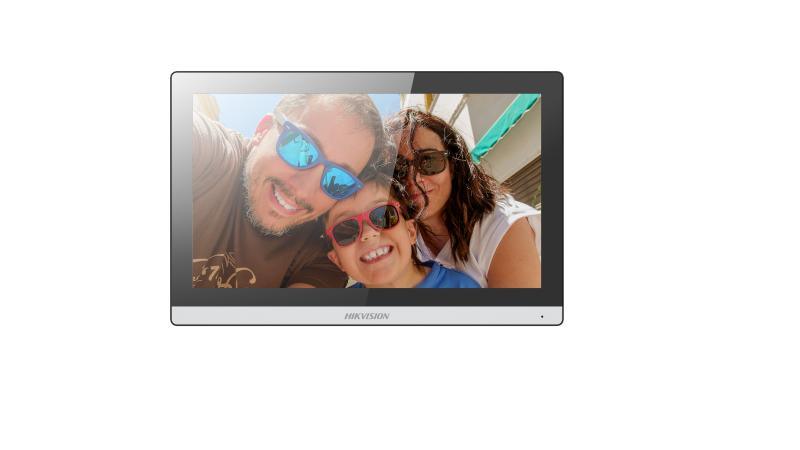

DS-KH6352-WTDE6(B)
4-Wire Hybrid HD Indoor Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful TFT
- Resolution1024 × 600
- Luminance250 cd/m² （Typ）
- Viewing AngleHorizontal 160°, vertical 130°
- Contrast700 (Typ)
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711U, G.711A
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Capacity
- Linked indoor extensions capacity2
- Linked doorphone capacity2 analog doorphones
- Analog Camera1
- Network parameters
- Wi-FiWi-Fi 802.11 b/g/n
- Device interfaces
- Alarm input2
- Network interface/
- RS-485/
- TF cardSupport TF card, up to 128 G
- Alarm output/
- Four-Wire interface4
- Power interface1
- Debugging port2
- Relay/
- General
- Button0 physical button(s)
- InstallationSurface mounting
- Indicator/
- With package: 708g (1.56 lb),Without package: 260 g (0.5973 lb)
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)175 mm × 113.5 mm × 18.1 mm (6.89″ × 4.47″ × 0.71″)
- Power supply12 VDC
- Application environmentIndoor
- Power consumption≤ 5 W
- LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
- MaterialPlastic
