描述
HIKVISION DS-KH9310-WTE1(B) 是海康威視視像對講室內分機，安裝於單位或寫字樓接待。香港防盜為安裝商及經銷商。要及門口機配對；規格以下方原廠資料為準。

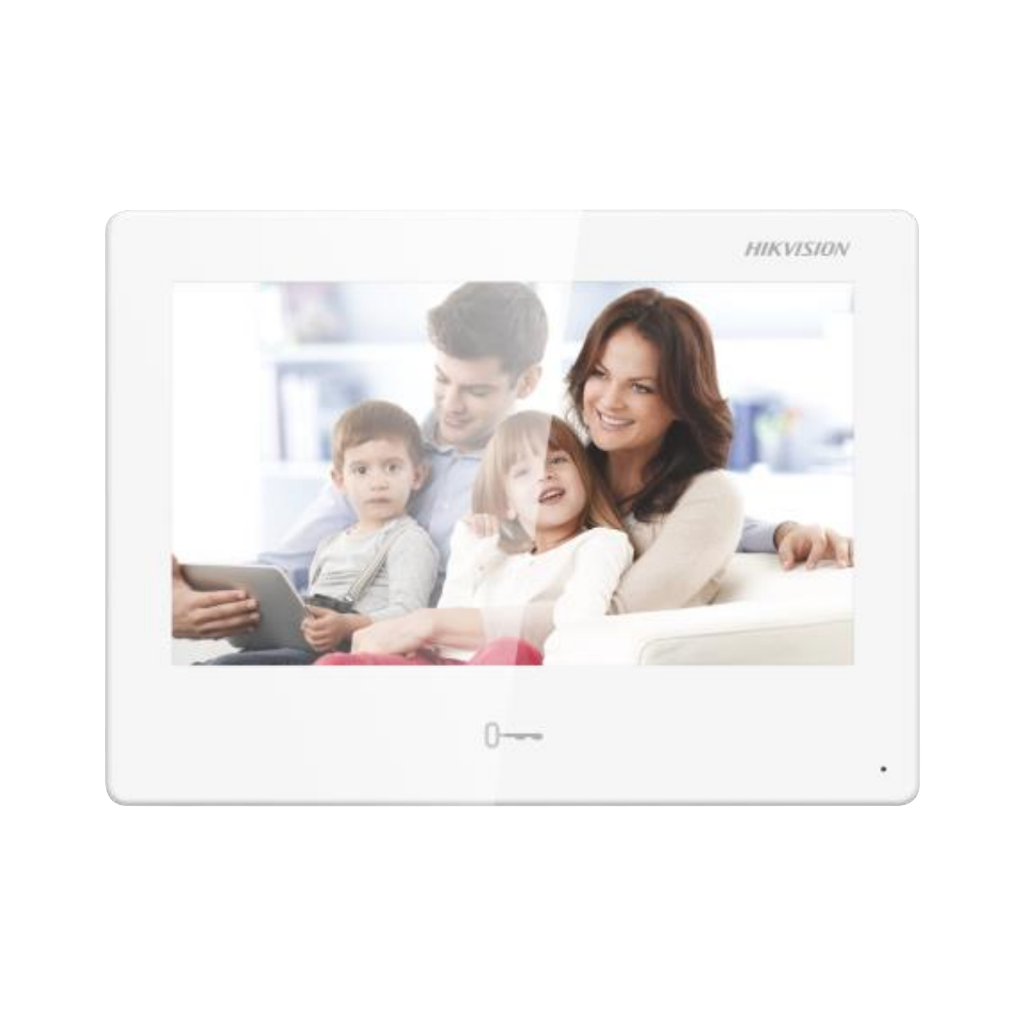

HIKVISION DS-KH9310-WTE1(B)
All-in-one Indoor Station
Features
7-inch colorful touch screen with 1024 × 600 resolution
Built-in Android System
Supports Android APP installation
Support for three-party software integration
Built-in Hik-Connect APP
For all-in-one management of Hikvision’s devices on tablet
Specifications
| System parameters | |
| Operation system | Android 10.1 |
| ROM | 8 GB |
| RAM | 2 GB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711U, G.711A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | 200 captured pictures, 200 alarm records |
| Notice capacity | 200 |
| Linked indoor extensions capacity |
16 |
| Linked network camera capacity | 16 |
| Linked doorphone capacity | 17 |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 1 |
