描述

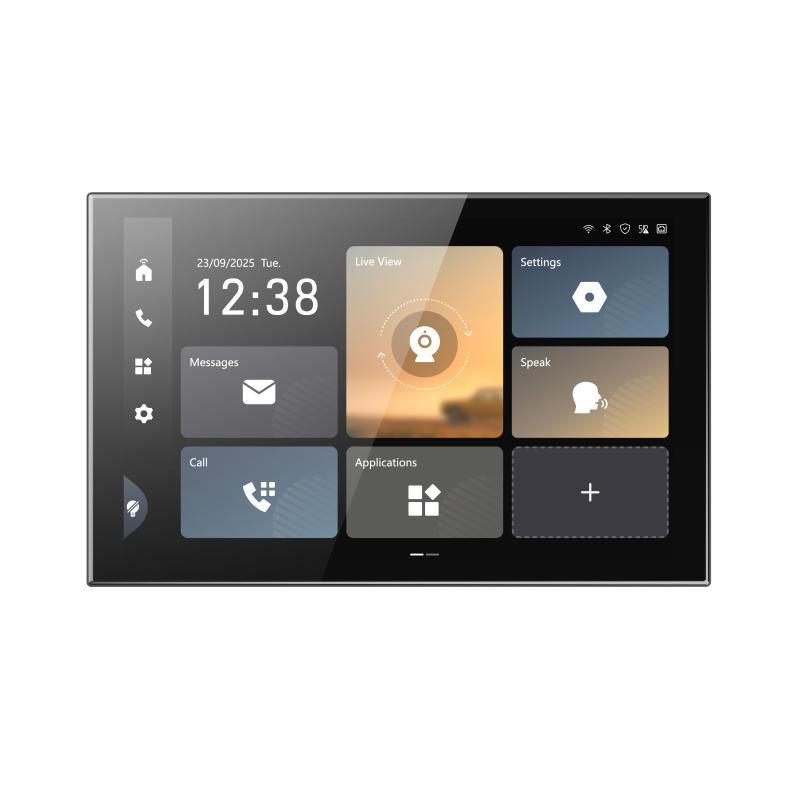

HIKVISION DS-KH9570-WTE1/F DS-KH9570-WTE1/F 是海康威視視像對講室內分機，安裝於單位或寫字樓接待。香港防盜為安裝商及經銷商。要及門口機配對；規格以下方原廠資料為準。
DS-KH9570-WTE1/F
DS-KH9570-WTE1/F
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemAndroid 14
- ROM8 GB
- RAM4GB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size10.1-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1920 ×1200
- Video parameters
- Lens/
- Resolution/
- Video compression standard/
- Audio parameters
- Audio input2 built-in omnidirectional microphone
- Audio compression standardG.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
- Audio output2 built-in loudspeaker (Max. 80dB@50cm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Linked doorphone capacity17
- Message capacity200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
- Linked indoor extensions capacity16
- Linked network camera capacity16 (Up to 4 1080P decoding streams at the same time, H.264&H.265)
- Network parameters
- Wi-FiWi-Fi 6, 2.4 GHz & 5GHz
- BluetoothBLE 5.0
- Network protocolIPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP SIP v1 (RFC2543), SIP v2 (RFC3261) DTMF: SIP Info SADP, ISAPI, ONVIF
- Device interfaces
- Alarm input2 (Reserved)
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- RS-485/
- TF cardSupport TF card (FAT32/exFAT), up to 256 G
- Power supply input12 VDC
- Power supply output/
- Relay/
- General
- Proximity SensorDistance: 50cm, Horizontal: 25°, Vertical: 25°
- InstallationFlush mounting
- Without package: 548 g (1.21 lb),With package: 920g (2.03 lb)
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Power supply12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
- Application environmentIndoor
- Power consumption≤ 24 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Dimension (W × H × D)246.58 mm × 155.76 mm × 11.82 mm (9.71″ × 6.13″ × 0.47″) (Out of the wall)
