HIKVISION DS-KH9570-WTE1/S 9 Series Indoor Stations 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

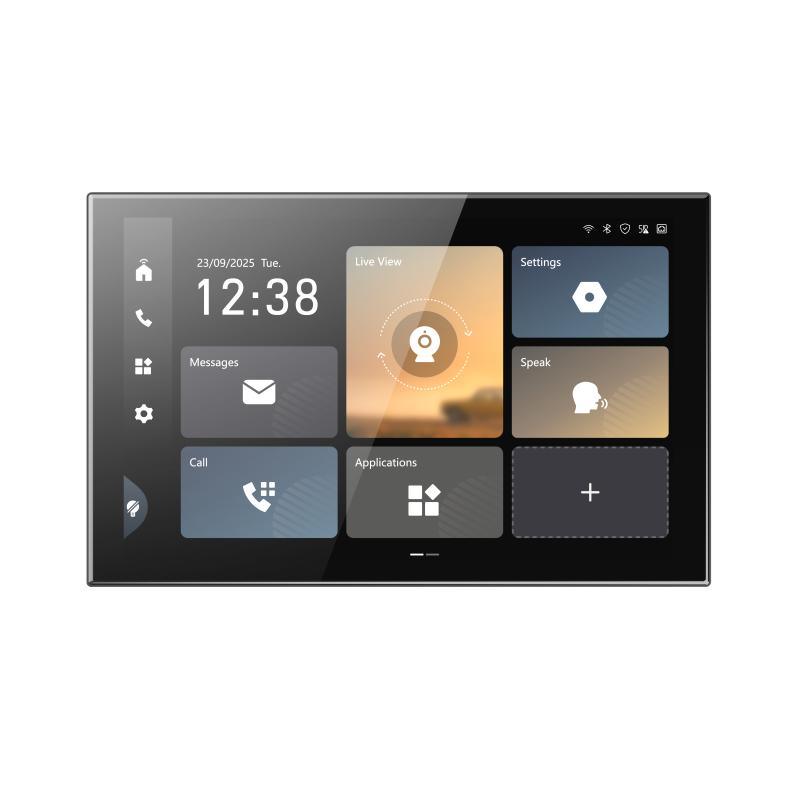

DS-KH9570-WTE1/S
9 Series Indoor Stations
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemAndroid 14
- ROM8 GB
- RAM4GB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size10.1-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1920 ×1200
- Video parameters
- Lens/
- Resolution/
- Video compression standard/
- Audio parameters
- Audio input2 built-in omnidirectional microphone
- Audio compression standardG.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
- Audio output2 built-in loudspeaker (Max. 80dB@50cm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Linked doorphone capacity17
- Message capacity200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
- Linked indoor extensions capacity16
- Linked network camera capacity16 (Up to 4 1080P decoding streams at the same time, H.264&H.265)
- Network parameters
- Wi-FiWi-Fi 6, 2.4 GHz & 5GHz
- BluetoothBLE 5.0
- Network protocolIPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP SIP v1 (RFC2543), SIP v2 (RFC3261) DTMF: SIP Info SADP, ISAPI, ONVIF
- Device interfaces
- Alarm input8 (Reserved)
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- RS-4851 RS-485 (Half duplex)
- TF cardSupport TF card (FAT32/exFAT), up to 256 G
- Power supply input12 VDC
- Power supply output12 VDC, 200mA
- Relay1 (Reserved), Max. 30VDC 1A
- General
- Proximity SensorDistance: 50cm, Horizontal: 25°, Vertical: 25°
- InstallationSurface mounting
- Without package: 545 g (1.2 lb),With package: 639g (1.41 lb)
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Power supply12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
- Application environmentIndoor
- Power consumption≤ 24 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Dimension (W × H × D)246.58 mm × 155.76 mm × 23.62 mm (9.71″ × 6.13″ × 0.93″)
