描述

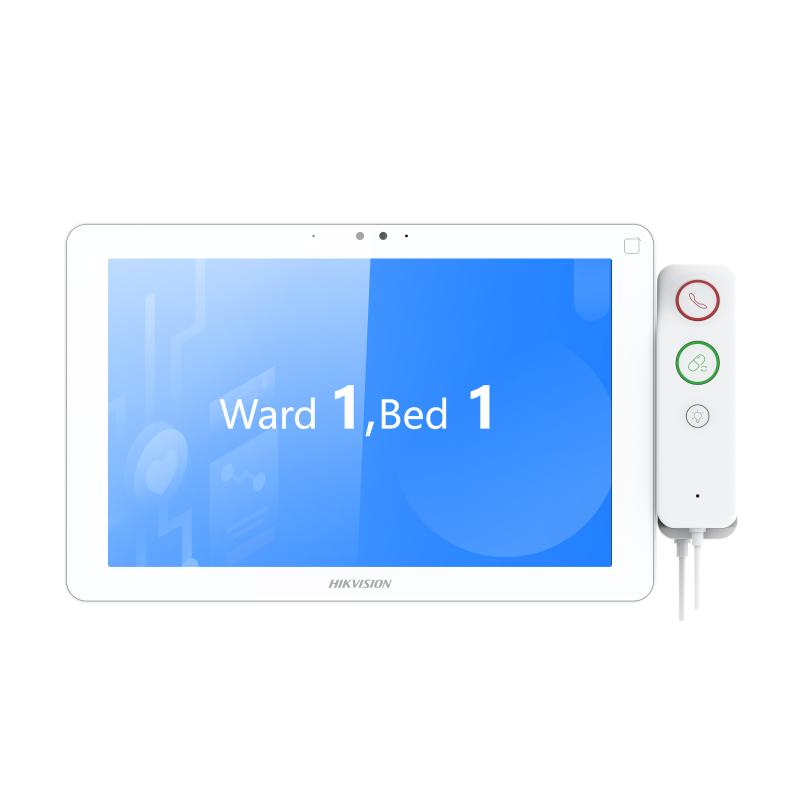

DS-KHB9533X-WHS
10.1-inch Screen Android Bedside Terminal
DS-KHB9533X-WHS 屬海康威視視像對講產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System parameters
| Operation system | Android 10.0 |
|---|---|
| ROM | 4 GB |
| RAM | 2 GB |
Display parameters
| Screen size | 10.1-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful IPS |
| Resolution | 1280 × 800 |
Audio parameters
| Audio input | Built-in omnidirectional microphone, external speaker |
|---|---|
| Audio compression standard | G.711U |
| Audio output | Built-in SPK |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Network parameters
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | Support |
| Wireless network | 868MHz |
Device interfaces
| Alarm input | 4 |
|---|---|
| Network interface | 1*RJ45 |
| RS-485 | 1 |
| TF card | Support TF card, up to 128 G |
General
| Installation | Arm mounting |
|---|---|
| Working temperature | -10℃～50℃ |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 256mm x 165mm |
| Application environment | Indoor |
| Power Supply Output | 12 VDC, standard PoE (LAN1) |
| Power consumption | ≤ 8 W |
