描述

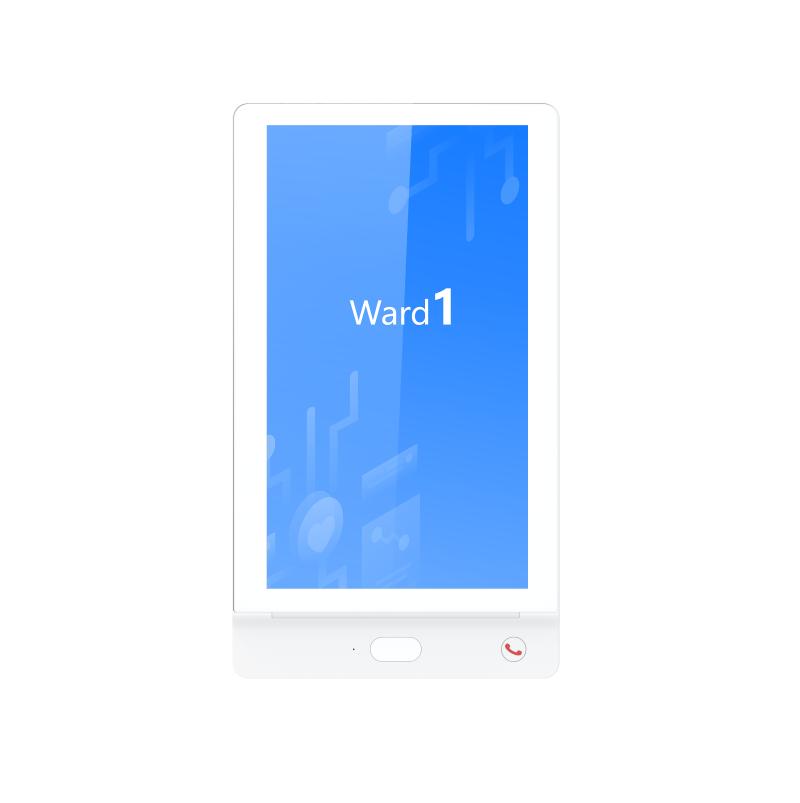

DS-KHD9800X-W
Doorway Terminal
DS-KHD9800X-W 屬海康威視視像對講產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System parameters
| Operation system | Android 10.0 |
|---|---|
| ROM | 4 GB |
| RAM | 2 GB |
Display parameters
| Screen size | 15.6-inch |
|---|---|
| Operation method | Capacitive touch screen + Physical buttons |
| Type | Colorful IPS |
| Resolution | 1920 × 1080 |
Audio parameters
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U, G.711 A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Network parameters
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 1 |
Device interfaces
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TF card | 1, Support 128G card |
General
| Installation | Surface mounting |
|---|---|
| Working temperature | -10℃～50℃ |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 243.4mm×428.6mm×28.8mm |
| Power Supply Output | 12 VDC / POE |
| Power consumption | ≤ 10 W |
