描述
DS-KHB9703X-WH1

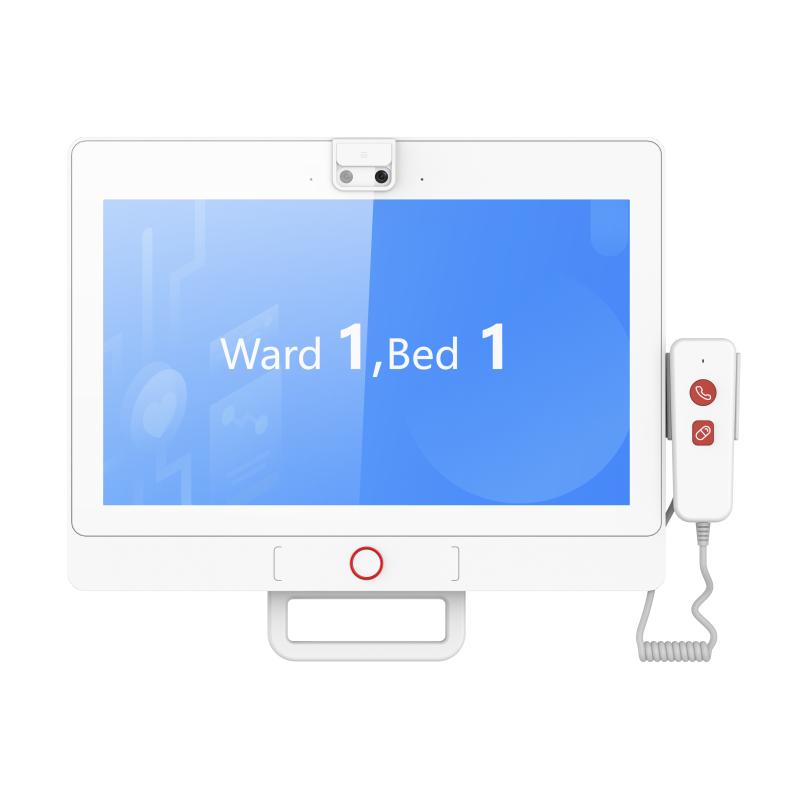

13.3-inch Screen Android Bedside Terminal
DS-KHB9703X-WH1 屬海康威視視像對講產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System parameters
| Operation system | Android 11 |
|---|---|
| ROM | 8 GB |
| RAM | 2 GB |
Display parameters
| Operation method | Capacitive touch screen + Physical buttons |
|---|---|
| Screen size | 13.3-inch |
| Resolution | 1920 ×1080 |
Audio parameters
| Audio compression standard | G.711 U, G.711 A |
|---|---|
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio input | 2 built-in microphone |
Network parameters
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | Support |
| Wireless network | 868MHz |
Device interfaces
| Alarm input | 2 |
|---|---|
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive |
| RS-485 | 1 |
| TF card | Support TF card, up to 128 G |
General
| Installation | Wall Mounting |
|---|---|
| Working temperature | -10℃～50℃ |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 340.7mm×258.7mm×28.5mm |
| Power Supply Output | 12 VDC / POE |
| Power consumption | ≤ 20 W |
