描述

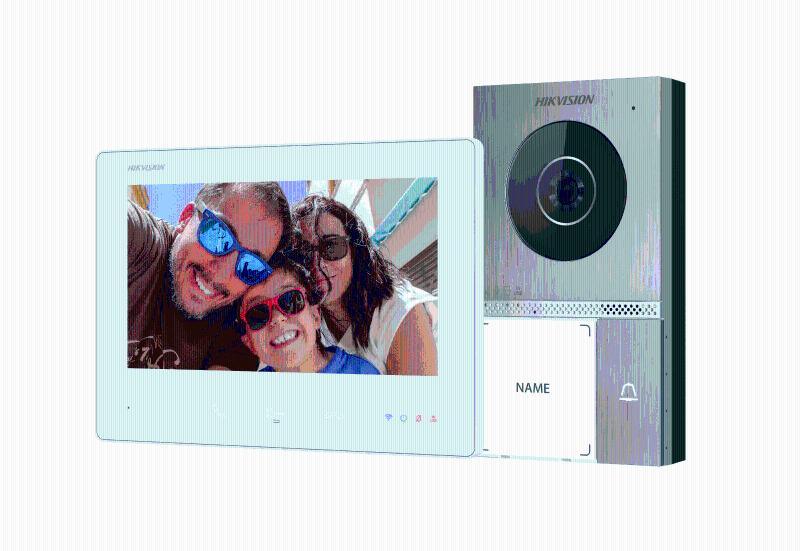

HIKVISION DS-KIS707EY 2-wire HD DIY villa kit 是海康威視視像對講套裝，通常含門口機及分機。香港防盜為安裝商及經銷商。套裝內容以原廠規格為準。
DS-KIS707EY
2-wire HD DIY villa kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Door station/System parameters
- ProcessorEmbedded Processor
- ROM4 GB
- RAM256 MB
- Operation systemEmbedded Linux operation system
- Door station/Screen parameters
- Screen sizeNA
- ResolutionNA
- TypeNA
- Operation methodNA
- Door station/Video parameters
- Supplement lightSupplement light Low illumination, IR supplement lights
- Resolution2MP
- Lens1
- Wide dynamic range (WDR)Support
- FOVHorizontal: 135°, Vertical: 85°
- Video compression standardH.264
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Volume adjustmentAdjustable
- Audio compression standardG.711 U, G.726
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Door station/Capacity parameters
- Linked indoor station capacityMax.400
- Sub door station capacity16
- Door station/Network parameters
- Wireless network10/100 Mbps self-adaptive through 2-wire interface
- Wi-FiOnly AP mode for configuration
- Door station/Device interfaces
- RS-4851
- Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Exit button1
- Door contact input1
- Alarm input2（supports Exit button or Door contact input）
- Power supply input12VDC input
- TAMPER1
- Debugging port1
- Two-Wire1
- DIP Switch6 decimal DIP switch
- Door station/General
- Button12
- Indicator4 LED lights(Opening door、Calling、Intercom、In use）
- Power supply48V，Powered by Indoor Station DS-KH7300EY-WTPE2 or 12VDC
- Power consumption≤ 6 W
- Working temperature-40° C to 60° C (-22° F to 140° F)
- Working humidity10% to 90%
- Application environmentOutdoor
- Dimension (W × H × D)165mm × 95 mm × 25 mm(6.5″ × 3.7″ × 0.98″)
- InstallationSurface mounting
- Protective levelIP65 IK08
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- RAM32 MB
- ROM128 MB
- ProcessorEmbedded processor
- Indoor station/Display parameters
- TypeColorful TFT screen
- Operatiing methodCapacitive touch screen
- Screen size7-inch
- Indoor station/Video parameter
- Video compression standard/
- Resolution1024 × 600
- Lens/
- Wide dynamic range (WDR)/
- FOV /
- Indoor station/Audio parameters
- Audio input1 Built-in omnidirectional microphone
- Audio output1 Buit-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Audio compression standardG.711 U, G.711 A
- Audio compression bitrate64 Kbps
- Indoor station/Capacity parameters
- Notice capacity200 captured pictures (with TF card)
- Linked indoor extensions capacity3
- Indoor station/Network parameters
- Wired network Two-wire network
- Wireless network2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Network protocolTCP/IP, SIP, RTSP
- Indoor station/Device interfaces
- RS-485/
- Alarm input1
- Alarm output/
- Power supply input24VDC 2.5A
- TAMPER/
- TF cardMax to 128 G, SD 2.0 or lower version
- USB/
- Two-Wire4, 1 for indoor station power in, 1 for indoor station power out, 1 for outdoor station power out, 1 for outdoor station out
- DIP switch2 decimal DIP switch and 1 binary DIP switch
- Indoor station/General
- Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- Power supply24 VDC, 2.5 A
- Power consumption≤ 6 W
- Working humidity10% to 90% (no-condensing)
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Dimension (W × H × D)190.2 mm × 138.2 mm × 20 mm (7.5″ × 5.4″ × 0.8″)
- InstallationSurface mounting
- Application environmentIndoor
- Protective level/
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
