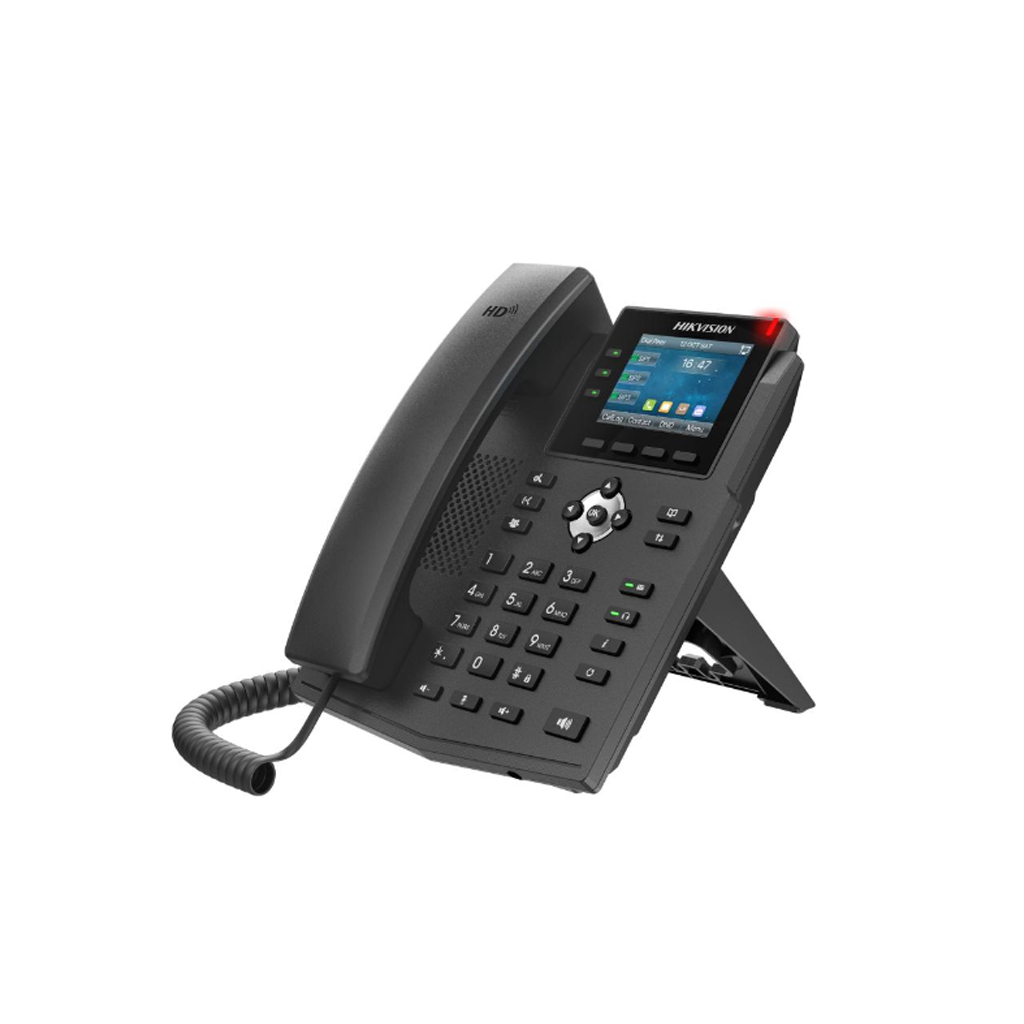

HIKVISION DS-KP8000-HE1
KH8 Series SIP Phone
Features
HD audio on speakerphone and handset
3 DSS keys on the 2.8”colorful display screen
Hardware video decoding (H.264, 1080P)
Dual 10M/100M Ethernet ports, standard PoE power supply
Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc
Specifications
System parameters | |
Operation system | Linux |
ROM | 128 MB |
RAM | 94 MB |
Processor | Embeded high performance processor |
Display parameters | |
Screen size | 2.8-inch |
Operation method | Physical keys |
Type | Colorful screen |
Resolution | 320 × 240 |
Video parameters | |
Resolution | QVGA / CIF / VGA / 4CIF / 720P / 1080P |
Video compression standard | H.264 |
Audio parameters | |
Audio input | HD voice microphone; HAC handset |
Audio compression standard | G.711A/U, G.729AB, iLBC, G.722, Opus |
Audio output | HD voice speaker (handset/hands-free, 0 to 7KHz frequency response) |
Audio quality | Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR), voice quality monitoring |
Volume adjustment | Adjustable |
Capacity | |
Communication lines | 6 SIP lines |
Contact capacity | Local phonebook: 1000 Remote phonebook: XML/LDAP, 1000 |
Call log capacity | 600 in/out/missed calls |
Network parameters | |
Network protocol | SIP V1 (RFC2543), V2 (RFC3261) over UDP/TCP/TLS,RTP,RTCP,SRTP,STUN,DHCP,IPv6,PPPoE,L2TP,OpenVPN,SNTP,FTP/TFTP,H TTP/HTTPS,TR-069 |
Device interfaces | |
Network interface | 2 RJ-45 10/100 Mbps self-adaptive |
Power supply input | 1, 5 VDC |
Communication interface | 2 RJ-9, handset × 1 |
General | |
Button | 37 Keys: 3 line keys (BLF keys) with LED indicator light; 2 Keys for with LED indicator light,including: MWI/handset 8 keys, including: Hold/Transfer/Conference/Contact/CallLog/Status/Redial/Mute 4 soft keys 4 navigation keys 1 OK key 12 standard phone digits keys 2 volume control keys (Up/Down) 1 hands-free key |
Installation | Desktop stand (angle 1: 45°), wall mounting |
Indicator | Red: call and message waiting |
Working temperature | 0 °C to 45 °C (32 °F to 113 °F) |
Working humidity | 10% to 95% (no-condensing) |
Dimension (W × H × D) | Desktop stand (angles 1: 45°): 169 mm x 186.3 mm x 174.5 mm; Desktop stand (angles 2: 50°): 169 mm x 177.6 mm x 183.7 mm; Wall-mounted: 169 mm x 115.6 mm x 212.5 mm |
Power supply | 5 VDC, IEEE802.3af, standard PoE |
Application environment | Indoor |
Power consumption | PoE: 1.78 W to 5.92 W Adapter: 1.28 W to 4.31 W |
