HIKVISION DS-KP9301-HE1 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

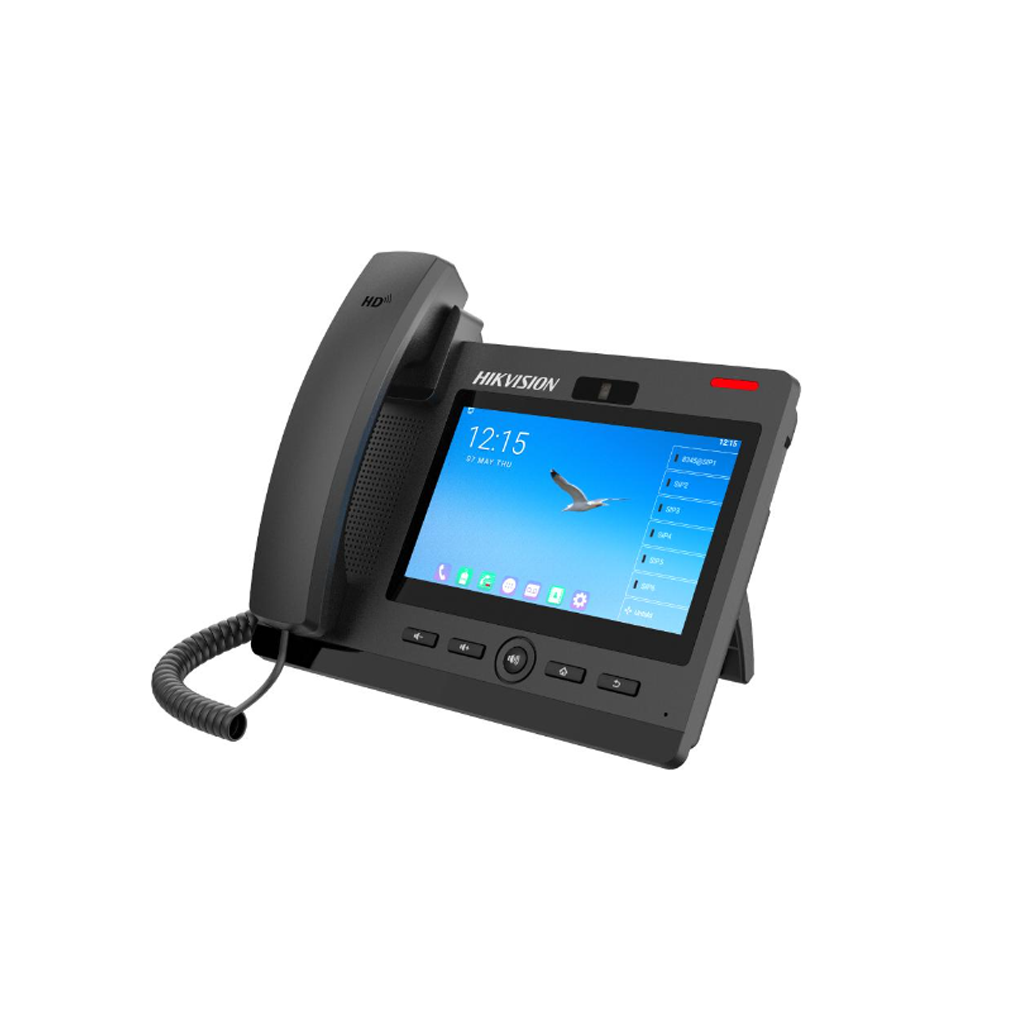

HIKVISION DS-KP9301-HE1
KP9 Series SIP Phone
Features
20 SIP lines, SIP hotspot
Embedded 1080P camera
Android 9.0 system provides more intelligent and smoother operation experience for the users
112 one-touch DSS keys on 7-inch capacity color touch screen
Support video codec H.264, for SIP video calls, RTSP video monitored
Supports video live view and open doors with video door station device
Dual gigabit ethernet ports, standard PoE power supply
Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Specifications
| System parameters | |
| Operation system | Android 9.0 |
| ROM | 4 GB |
| RAM | 2 GB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Touch screen |
| Type | IPS |
| Resolution | 1024 × 600 |
| Video parameters | |
| Lens | 2 MP HD camera |
| Resolution | 2 MP |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio input | HD voice microphone; HAC handset |
| Audio compression standard | G.711A/U, G.729AB, iLBC, G.722, Opus |
| Audio output | HD voice speaker (handset/hands-free, 0 to 7KHz frequency response) |
| Audio quality | Full-duplex acoustic echo canceller (AEC), noise reduction (NR), packet loss concealment (PLC) |
| Volume adjustment | Adjustable |
| Capacity | |
| Communication lines | 20 SIP lines |
| Contact capacity | Local phonebook: 2000 Remote phonebook: XML/LDAP, 2000 |
| Call log capacity | 1000 in/out/missed calls |
| Network parameters | |
| Network protocol | SIP V1 (RFC2543), V2 (RFC3261) over UDP/TCP/TLS,RTP,RTCP,SRTP,STUN,DHCP,IPv6,PPPoE,L2TP,OpenVPN,SNTP,FTP/TFTP,H TTP/HTTPS,TR-069 |
| Device interfaces | |
| Network interface | 2 RJ-45 10/100/1000 Mbps self-adaptive |
| USB | 1 USB2.0, reserved |
| TF card | Max to 128 G (reserved) |
| Power supply input | 1, 5 VDC |
| Communication interface | 2 RJ-9, handset × 1 |
| Video output | 1, reserved |
| General | |
| Button | 5 keys, including 1 home key, 1 return key, 1 hand free key, and 2 Volume Control keys (up/down) |
| Installation | Desktop stand, wall mounting |
| Indicator | Red: call and message waiting |
| Working temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | Desktop Stand (Angle 1): 254.8 mm x 154.9 mm x 202.8 mm; Desktop Stand (Angle 2): 254.8 mm x 167.8 mm x 182.4 mm; Wall Mounted: 254.8 mm x 118.4 mm x 206.9 mm |
| Power supply | 5 VDC, IEEE802.3af, standard PoE |
| Application environment | Indoor |
| Power consumption | PoE: 3.11 W to 10.76 W Adapter: 2.38 W to 8.4 W |
