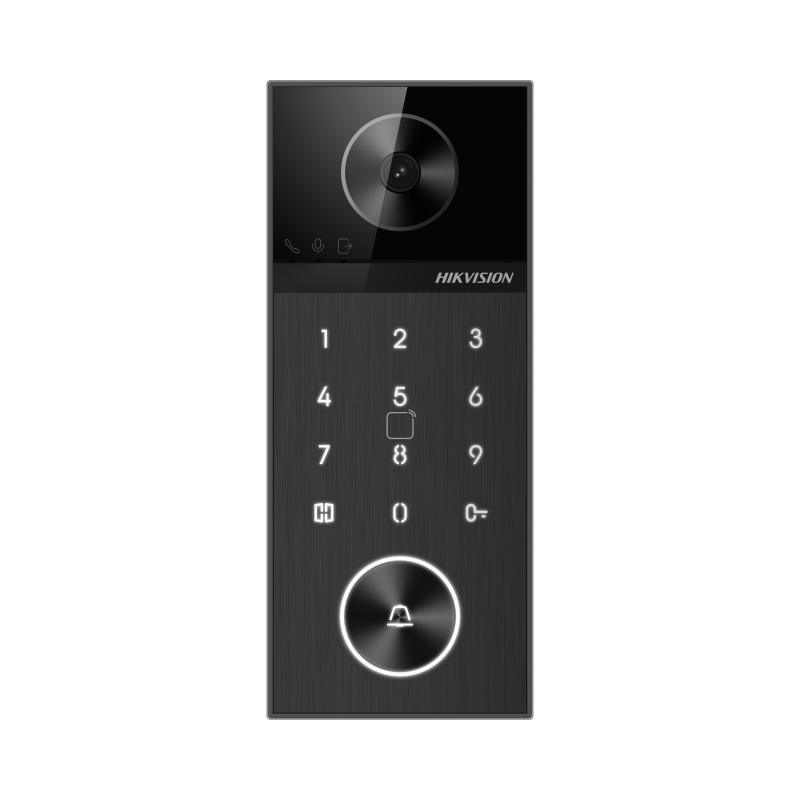

HIKVISION DS-KV6124-WBE1 Villa door station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KV6124-WBE1
Villa door station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemLinux
- ROM4 GB
- RAM512 MB
- ProcessorEmbeded high performance processor
- Video parameters
- Lens1
- ResolutionMain stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
- FOVHorizontal: 150°; Vertical: 75°
- Wide dynamic range (WDR)Support 120 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264; H.265; MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
- Audio output1 built-in loudspeaker
- Audio compression bitrate8~64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Audio Performance50cm 80dB (Maximum: 50cm 83dB)
- Audio Sample Rate16kHz、8kHz
- Capacity
- User capacity2000
- Face capacity/
- Card capacity6000
- Network parameters
- Network protocolTCP/IP, RTSP, ipv6,onvif
- Wi-Fi2.4G
- BluetoothSupported
- 3G/4G/
- Wi-Fi ProtocolIEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
- Wi-Fi TypeWiFi 6
- Authentication
- Authentication modeCard, PIN code, Bluetooth, Hik-Connect, indoor station
- Card typeM1 Card
- Card reading frequency13.56 MHz
- Card reading distanceM1 card：2 to 2.5 cm
- Application
- Mobile APPHik-Connect
- Motion DetectionSupport
- PlaybackSupport
- Call ElevatorSupport
- Smart Features Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
- Device interfaces
- Alarm input4, (include Exit button and Door contact input)
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button1
- RS-4851
- USB/
- Wiegand/
- TF cardSupport TF card, up to 128 G
- Alarm output/
- Lock control2 relays, Max. 30 VDC 2 A
- Door contact input1
- Supported TF FormatFAT32;exFAT
- General
- Button1 physical button
- InstallationSurface mounting
- Indicator3
- Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
- Protective levelIP65
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)164 mm × 69 mm × 24.7 mm (6.46″ × 2.72″ × 0.97″)
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Power supply12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
- MaterialFront Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass
- Power Supply OutputMax. 12 VDC, 1 A
