描述

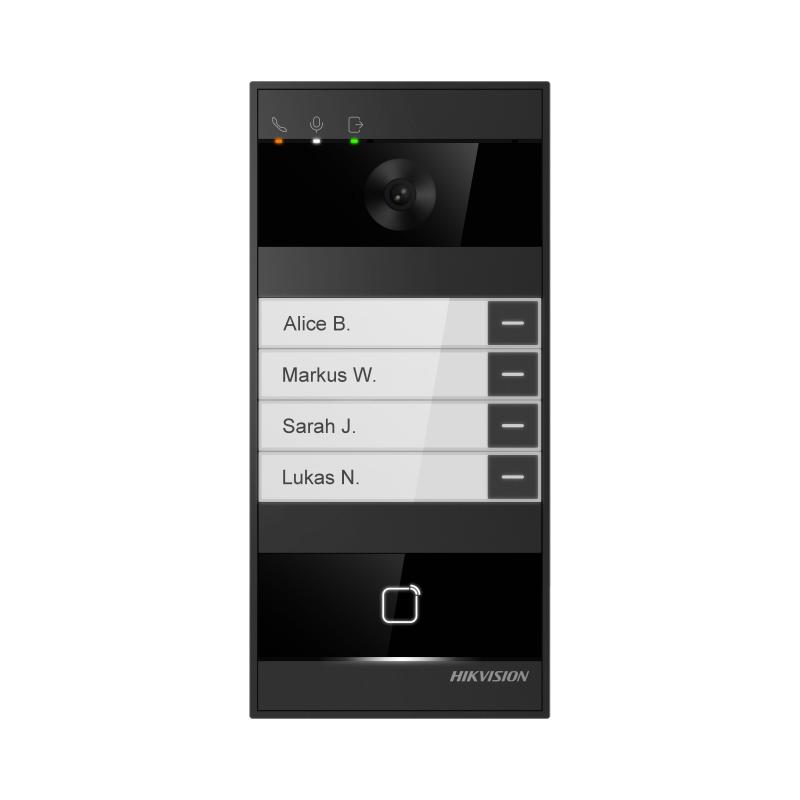

DS-KV8114-NWE1
Metal Villa Door Station
DS-KV8114-NWE1 屬海康威視視像對講產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System parameters
| Operation system | Linux |
|---|---|
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embedded high performance processor |
Video parameters
| Lens | 1 |
|---|---|
| Resolution | Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) |
| FOV | Horizontal: 150°; Vertical: 105° |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
Audio parameters
| Audio input | 2 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 |
| Audio output | 2 built-in loudspeaker |
| Audio compression bitrate | 8~64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio Performance | 50cm, 85dB |
| Audio Sample Rate | 8kHz, 16kHz |
Capacity
| User capacity | 5000 |
|---|---|
| Face capacity | 5000 |
| Card capacity | 25000 |
| Sub door station capacity | 16 |
Network parameters
| Network protocol | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, UDP, WebSocket, WebSockets，ONVIF, SIP v2 (RFC3261) |
|---|---|
| Wi-Fi | 2.4G |
| Bluetooth | Supported, BLE 5.2 |
| 3G/4G | / |
| Wi-Fi Protocol | IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax |
| Wi-Fi Type | WiFi 6 |
Authentication
| Authentication mode | Face, Card, Bluetooth, Hik-Connect, Indoor station, Mobile APP |
|---|---|
| Card type | M1 Card |
| Card reading frequency | 13.56 MHz |
| Face recognition distance | 0.3 to 1.5 m |
| Card reading distance | 3 cm |
Application
| Mobile APP | Hik-Connect |
|---|---|
| Motion Detection | Support |
| Playback | Support |
| Call Elevator | Support |
| Smart Features | 1. Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound, Gunshot Recommended Detection Distance: ＜ 3 m 2. Portrait Centered 3. Perimeter Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection Recommended Detection Distance: ＜ 10 m Supports Person and Vehicle Target Detection 4. Fall Down Detection Recommended Detection Distance: ＜ 5 m 5. Target Microphone Pickup Range: Forward 60° Sector Area Recommended Detection Distance: 0.5 m ~ 1 m 6. Smart Noise Reduction Supports Common Steady-State and Non-Steady-State Street Noises Noise Reduction Level: > 15 dB |
Device interfaces
| Alarm input | 4, (include Exit button and Door contact input) |
|---|---|
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | / |
| Lock control | 2 relay, Max. 30 VDC 1A |
| Door contact input | 2 |
| Supported TF Format | FAT32;exFAT |
General
| Application environment | Outdoor |
|---|---|
| Button | 4 physical button(s) |
| Installation | Surface mounting & Flush mounting |
| Indicator | 3 |
| Protective level | IP66, IK08 (excluding the lens area and card reading area) |
| Storage temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Battery | / |
| Dimension (W × H × D) | 202.6 mm × 95.6 mm × 28.5 mm (7.98" × 3.76" × 1.12") |
| Power consumption | With Lock: < 14 W Without Lock: < 20 W |
| Power supply | 12 VDC, 2 A,IEEE 802.3 at, standard PoE |
| Material | Rear Shell Material: Plastic Front Shell: Aluminum Alloy & Plastic Frame: Aluminum Alloy Viewing Window Panel Material: Glass |
| Power Supply Output | Max. 12 VDC, 500mA |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan) |
| Ambient lighting | Support |
