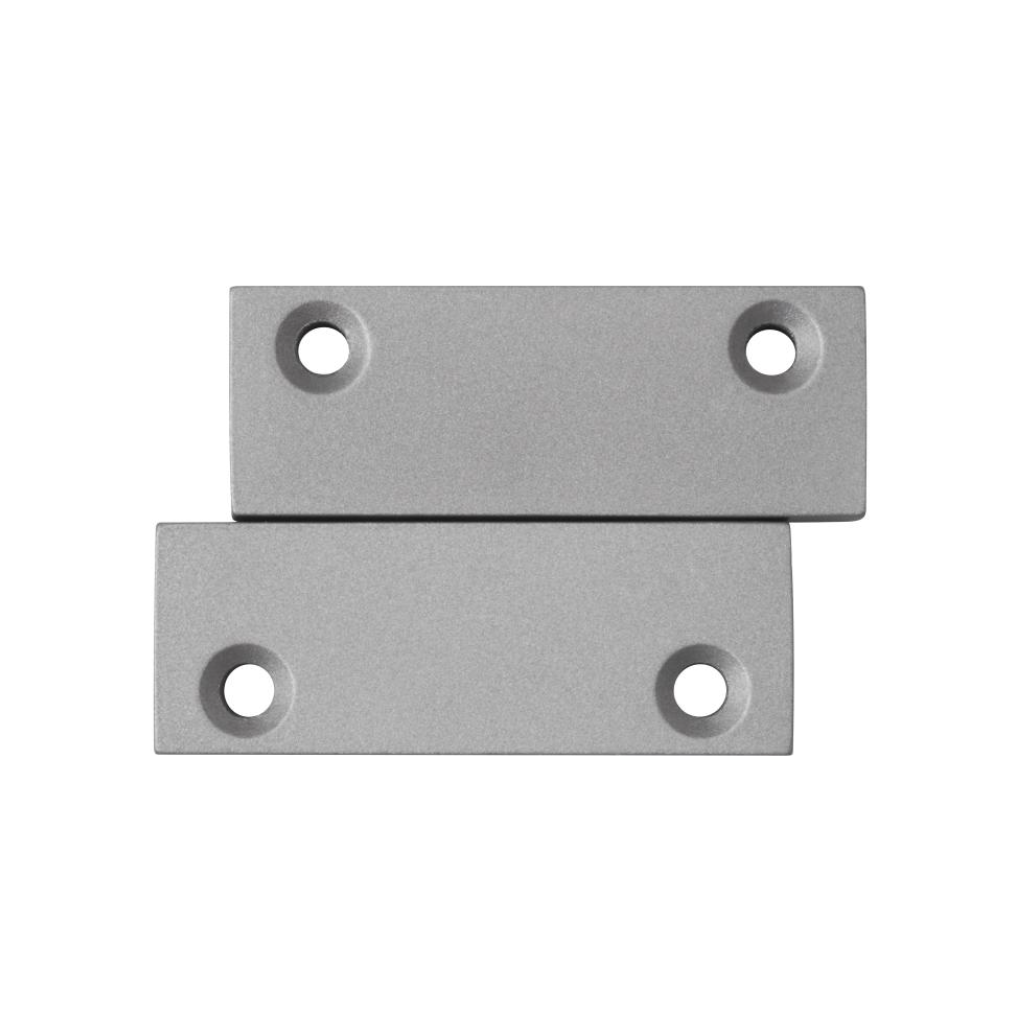

HIKVISION DS-PD1-MC-MS
Surface mounted magnetic contact
Features
- Metal shell
- Connection type: NC
- Designed for doors or windows
- Active gap: 40 mm
Specification
| Model | DS-PD1-MC-MS | |
| Detection Performance | Detection Gap | ≥35 |
| Interface | Alarm Output | Normally Closed |
| Electrical Characteristics | Typical Voltage | ≤100 VDC（Capacity） |
| Typical Current | ≤500 mA（Capacity） | |
| General | Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Operation Humidity | 10% to 90% | |
| Shell Material | Metal | |
| Dimension(WxHxD) | 50mm x 18mm x 10mm 50mm x 18mm x 10mm |
|
