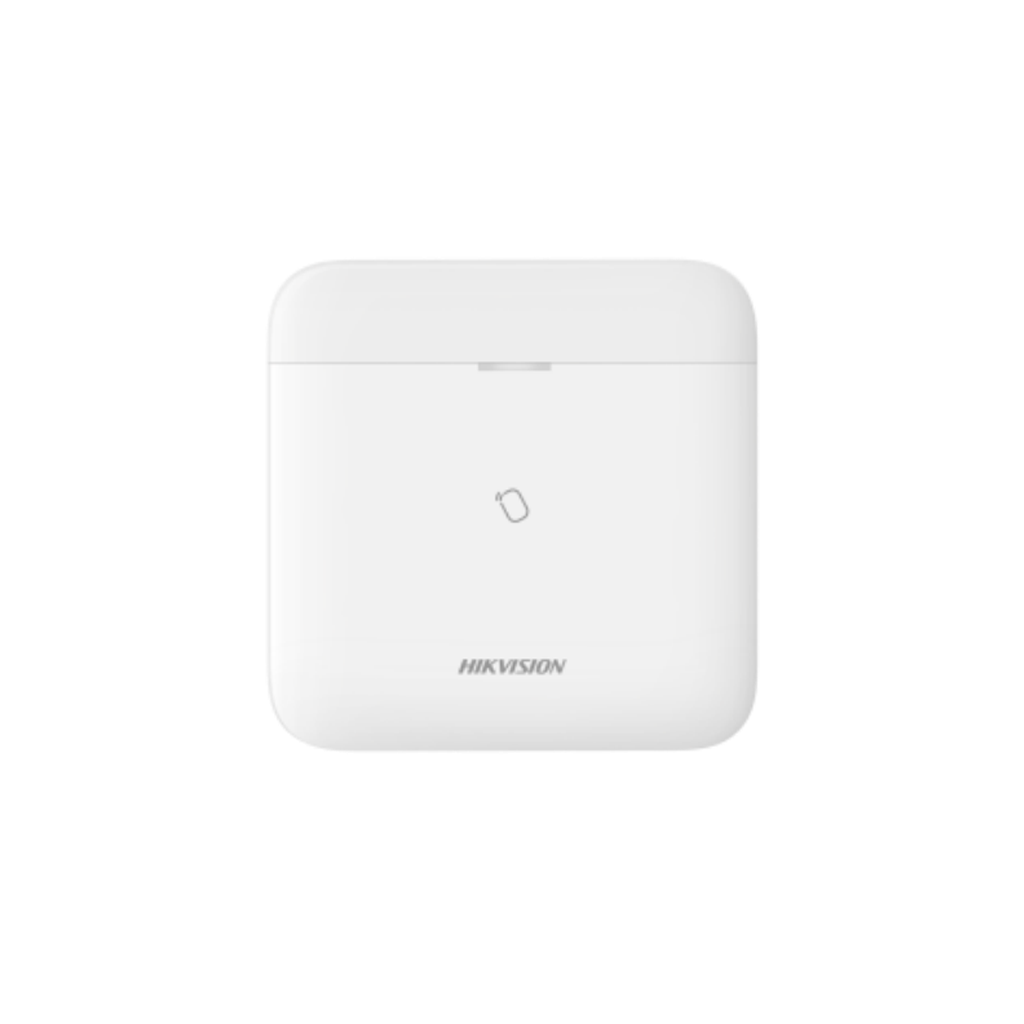

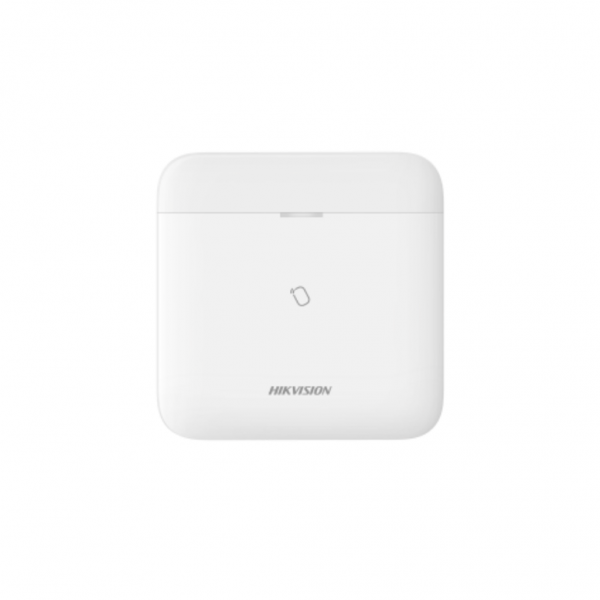

HIKVISION DS-PWA96-M-WB
Wireless Intrusion Alarm AX PRO (433MHz)
Features
- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Specification
| Software features | |
| Tag | 48 |
| Area | 32 |
| Zones | 96 (up to 48 PIRCAMs) |
| Onboard video clips | 4 |
| Installer | 1 |
| User | 46 |
| Admin | 1 |
| Voice Prompt | Supported |
| Loudspeaker built in | Supported |
| Tag reader built in | Supported |
| Memory Log stored | 5000 |
| Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
| Firmware upgrade | APP/Web Portal |
| Arm modes | Away/Stay |
| Automatic Arm/Disarm Timers | Supported |
| Forced Arming with Open Zones | Supported |
| Diagnostics via the APP or Web | Supported |
| ARC protocol | SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control |
| User APP for operating | Supported |
| Installer APP for programming | Supported |
| Web server for maintenance (offline configuration) | Supported |
| Hardware features | |
| RS232 output | Supported |
| SIM slot | Dual |
| RF transmission | |
| Two-way Wireless Communication | Support |
| RF Frequency | 433 Mhz |
| Wireless Security | Frequency hoping 128 AES encryption |
| 3/4G on board | Supported |
| Electrical characteristics | |
| Power supply | Built in power supply |
| Battery type | Built in on board Battery Li |
| Battery life span | Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
| Wireless transmission | |
| Wired network | Supported |
| Wi-Fi Standard | Supported |
